Spears 2621-020G 2 PVC Utility Ball Valve THD EPDM

Product Description

The Spears 2621-020G is a two-inch PVC utility ball valve designed for various applications including irrigation and pool systems. This valve operates with a quarter-turn mechanism for efficient flow control and features threaded ends for easy installation. It is rated for a pressure of one hundred fifty psi and a temperature of up to one hundred forty degrees Fahrenheit. The valve includes a T-handle actuator for straightforward operation.

• Two-inch nominal size with FNPT ends
• EPDM soft goods for enhanced sealing
• Corrosion-resistant PVC construction

Product Highlights

This product provides reliable performance in fluid control applications.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2621-020G

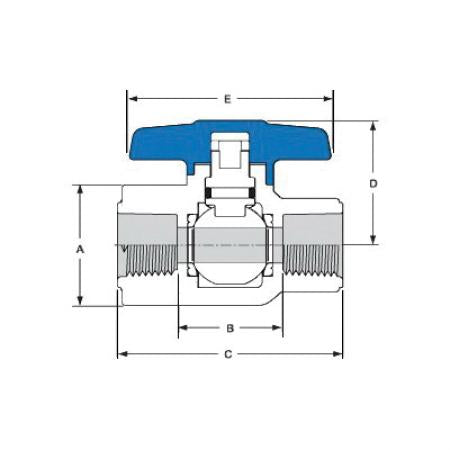

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• End Style: FNPT
• Inlet to Outlet Length: five and three-sixteenths inches
• Nominal Size: two inches
• Pressure Rating: one hundred fifty psi
• Softgoods Material: EPDM
• Temperature Rating: one hundred forty degrees Fahrenheit
• Top to Inlet Center: three and seven-eighths inches
• Trim Material: PVC Stem
