Spears 2621-007C 3/4 CPVC Utility Ball Valve Thread EPDM

Product Description

Spears 3/4 CPVC Utility Ball Valve, MPN 2621-007C, is designed for various plumbing applications. This valve is crafted from CPVC for durability and features a T-handle actuator for easy operation. It is rated for a pressure of 150 psi and a temperature of 200 degrees Fahrenheit.

• CPVC body and ball for chemical resistance
• Threaded FNPT ends for easy installation
• EPDM O-ring for a secure seal

Product Highlights

The Spears utility ball valve is ideal for controlling water flow in both residential and commercial settings. Its durable construction ensures long-lasting performance in various conditions.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2621-007C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• End Style: FNPT

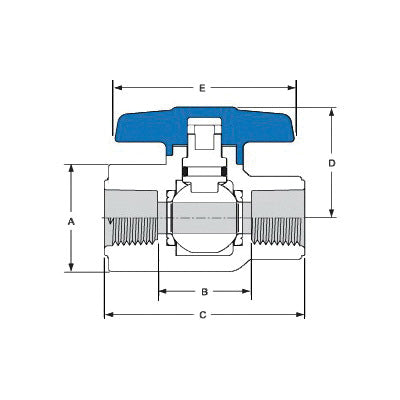

• Inlet to Outlet Length: 2-15/16 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 2 inches
• Trim Material: CPVC Stem and PTFE Seat
