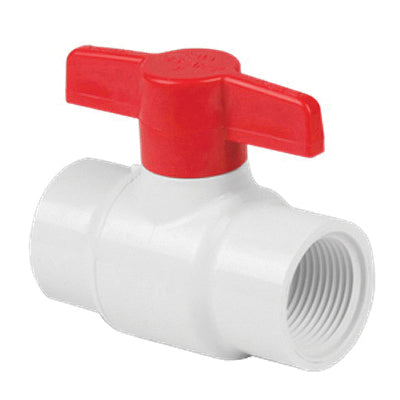

Spears 2621-007 3/4 PVC Utility Ball Valve Thd EPDM

Product Description

The Spears 2621-007 is a 3/4 inch PVC utility ball valve with a threaded end style and EPDM softgoods. This valve is designed for applications such as irrigation, pool and spa systems, and various general purpose needs. It operates at a pressure rating of 150 psi and is built for reliability and performance.

• Constructed from durable PVC material
• Features a T-Handle actuator for easy operation
• Compatible with various connection types including FNPT

Product Highlights

The Spears utility ball valve is suitable for both residential and commercial plumbing applications, providing a secure and effective shut-off solution.

Product Information

Standard Information

• Brand: Spears
• MPN: 2621-007

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: White
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2-15/16 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees F
• Top to Inlet Center: 2 inches
• Trim Material: PVC Stem
