Spears 2621-005 1/2 PVC Utility Ball Valve THD EPDM

Product Description

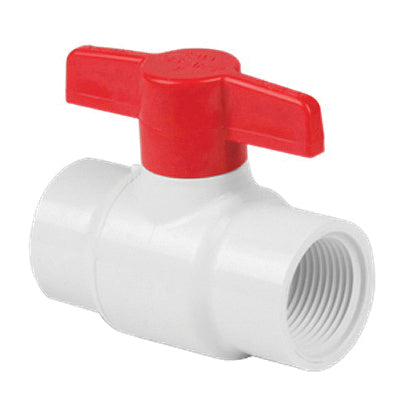

Spears 2621-005 is a 1/2 inch PVC utility ball valve designed for efficient flow control. This valve features a T-handle actuator and an EPDM O-ring seal. It operates at a pressure rating of 150 psi and a temperature range of up to 140 degrees Fahrenheit.

• Constructed from high-quality PVC for durability
• Threaded FNPT ends for easy installation
• Compact design with an inlet to outlet length of 2-11/16 inches

Product Highlights

This utility ball valve is suitable for various plumbing applications. It provides reliable performance and meets ASTM standards, ensuring compliance with industry safety and quality regulations.

Product Information

Standard Information

• Brand: Spears
• MPN: 2621-005

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: White
• Domestic/Import: Domestic
• End Style: FNPT
• Inlet to Outlet Length: 2-11/16 inches
• Nominal Size: 1/2 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 1-11/16 inches
• Trim Material: PVC Stem
