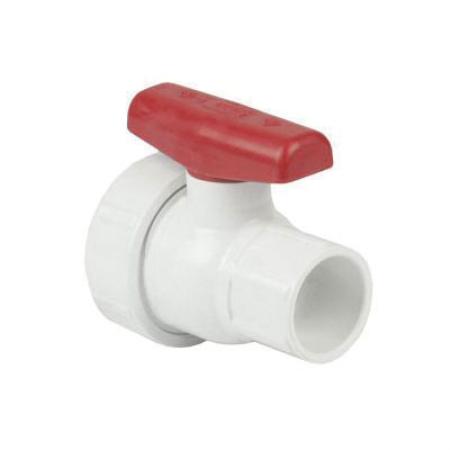

Spears 2422-020W 2 PVC SE Ball Valve SOC EPDM

Product Description

The Spears 2422-020W is a two-inch PVC single entry ball valve designed for socket connections. This valve is suitable for use in various plumbing and industrial applications where durability and chemical resistance are important. It features a T-handle actuator for easy operation and can handle pressures up to two hundred thirty-five psi at temperatures of one hundred forty degrees Fahrenheit.

• Socket connection for easy installation
• Heavy-duty PVC construction ensures long-lasting performance
• Compatible with EPDM O-rings for reliable sealing

Product Highlights

The Spears ball valve offers reliable performance and is NSF certified for potable water use. It is fully repairable, allowing for easy maintenance and extended service life.

Product Information

Standard Information

• Manufacturer: Spears
• Type: Single Entry

Technical Specifications

• MPN: 2422-020W
• Nominal Size: 2 in
• Body Material: PVC
• Ball Material: PVC
• Pressure Rating: 235 psi
• Temperature Rating: 140 deg F
• O-Ring Material: EPDM

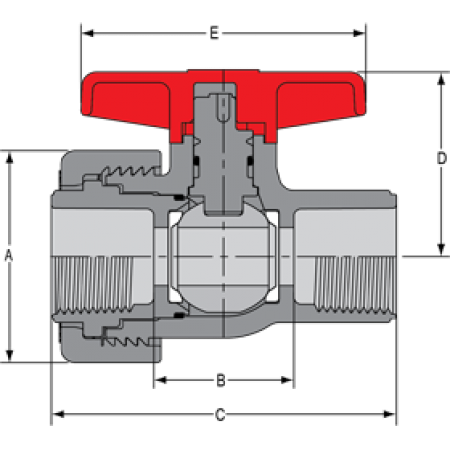

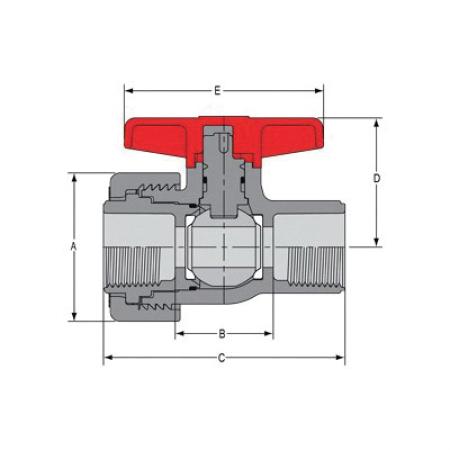

• Length from Inlet to Outlet: 5-1/2 in
• Top to Inlet Center: 3-3/4 in
• End Style: Socket
• Construction: EPDM
