Spears 2339-020C SPEVBCV2 2 SPEARS CPVC/V TUBV 2339-020C

Product Description

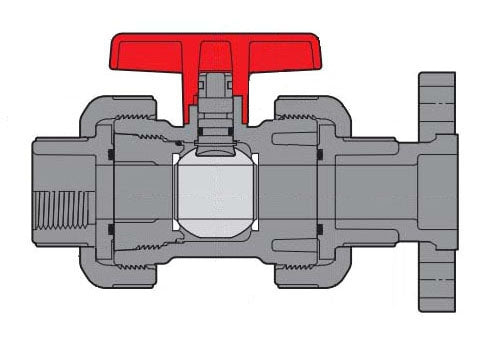

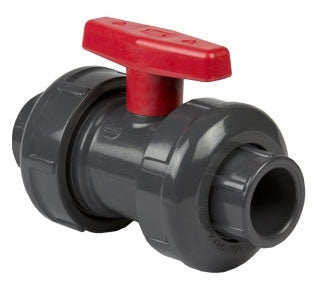

The Spears Manufacturing 2339-020C is a two-inch true union ball valve. It is made with CPVC and designed for various applications including industrial and chemical use. This valve features a strong buttress thread union nut that allows for safe removal of the downstream union nut.

• Ball valve type: true union
• Nominal size: two inches
• End connection: female threaded/socket x female threaded/socket

Product Highlights

Designed for high-pressure systems up to 235 PSI at seventy-three degrees Fahrenheit, this valve ensures reliable operation in demanding environments.

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• UPC: 5421150875

Technical Specifications

• Actuation Type: 1/4 turn
• End to End Distance: eight and thirteen-sixteenths inches
• Ball Material: ASTM D1784 Molded CPVC
• Body Material: ASTM D1784 Molded CPVC
• Seal Material: FKM O-Ring
• Seat Material: PTFE
• Temperature Rating: two hundred degrees Fahrenheit
• Pressure Rating: 235 PSI at seventy-three degrees Fahrenheit
• Color: gray
