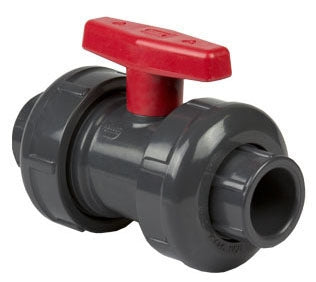

Spears 2339-010C Ball Valve True Union 1 Inch

Product Description

The Spears Manufacturing 2339-010C is a one-inch true union ball valve. This valve is designed for industrial applications, chemical processing, and potable water systems. It features a solid CPVC construction and is suitable for vacuum services.

• True union design for easy maintenance.
• Pressure rating of two hundred thirty-five PSI at seventy-three degrees Fahrenheit.
• Temperature rating of two hundred degrees Fahrenheit.

Product Highlights

This ball valve is equipped with a quarter-turn actuator for quick operation. The design ensures a tight seal to prevent leaks and is made from materials that resist chemical corrosion.

Product Information

Standard Information

• Manufacturer: Spears Manufacturing
• Type: Ball Valve
• Nominal Size: One Inch

Technical Specifications

• Ball Material: ASTM D1784 Molded CPVC
• Body Material: ASTM D1784 Molded CPVC
• Stem Material: ASTM D1784 Molded CPVC
• Seat Material: PTFE
• Seal Material: FKM O-Ring
• Handle Material: Polypropylene
• End Connection: Female Threaded/Socket x Female Threaded/Socket
• End to End Distance: Six and nine sixteenths inches
