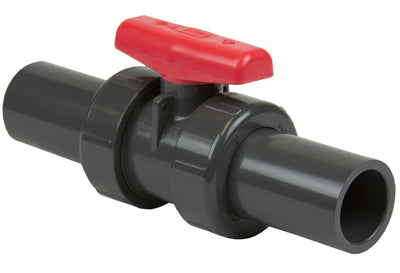

Spears 2339-010 1 PVC TU Ball Valve SOC/FPT FKM

Product Description

Spears 2339-010 is a 1 inch PVC True Union Ball Valve designed for reliable operation. This product features socket and FNPT end styles which facilitate easy installation in various plumbing applications. Its sturdy construction allows for a pressure rating of 235 psi and operates effectively at temperatures up to 140 degrees Fahrenheit.

• Constructed with chemical and corrosion-resistant PVC.
• Engineered for both socket and threaded end connections.
• Suitable for vacuum service and fully serviceable components.

Product Highlights

This valve is built for commercial and industrial use, ensuring both functionality and durability in demanding environments.

Product Information

Standard Information

• Brand: Spears
• Model Number: 2339-010

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Nominal Size: 1 inch
• End Style: Socket and FNPT
• Pressure Rating: 235 psi
• Temperature Rating: 140 degrees Fahrenheit
• Inlet to Outlet Length: 6-9/16 inches
• Top to Inlet Center: 2-13/16 inches
• Softgoods Material: FKM
• Series: True Union
• Trim Material: PVC Stem and PTFE Seat
