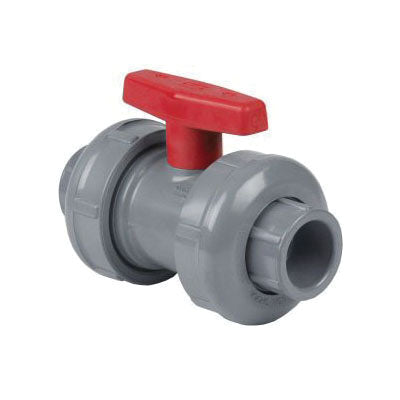

Spears 2339-007C 3/4 CPVC TU Ball Valve SOC/FPT FKM

Product Description

The Spears 2339-007C is a 3/4 inch CPVC true union ball valve designed for reliable performance in your plumbing and HVAC applications. This valve features a socket and female NPT connection style. It supports a pressure rating of 235 psi and operates effectively at temperatures up to 200 degrees Fahrenheit.

• 3/4 inch nominal size
• CPVC body construction
• FKM O-ring for enhanced sealing

Product Highlights

The Spears 2339-007C valve is suitable for various applications, including water distribution and chemical processing. Its reliable sealing and durable construction make it ideal for service in demanding environments.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2339-007C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• End Style: Socket and FNPT
• Inlet to Outlet Length: 6-3/16 inches
• Nominal Size: 3/4 inch
• Pressure Rating: 235 psi
• Temperature Rating: 200 degrees Fahrenheit
• Softgoods Material: FKM
• Top to Inlet Center: 2-5/8 inches
• Trim Material: CPVC Stem and PTFE Seat
