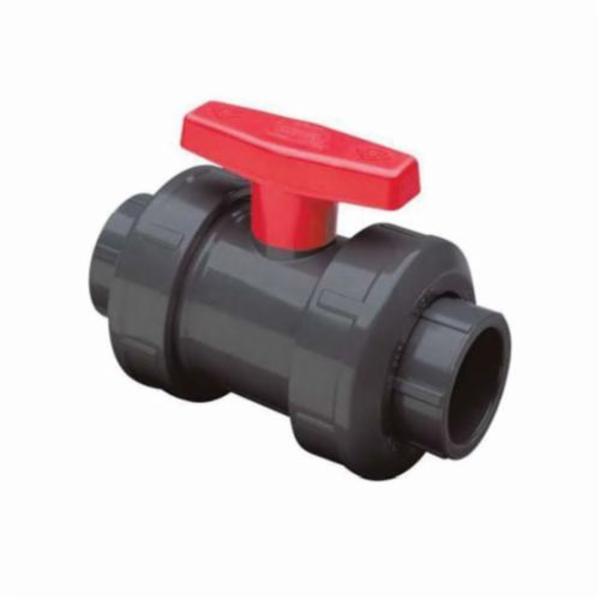

Spears 2339-007 True Union Regular Style Ball Valve 3/4 in

Product Description

The SPEARS 2339-007 is a true union regular style ball valve. This quarter-turn shut-off valve is well suited for industrial and chemical processing applications. It features chemical and corrosion resistant PVC or CPVC construction and a SCH 80/XH full bore design. Suitable for vacuum service.

• Chemical and corrosion resistant PVC or CPVC construction
• SCH 80/XH full bore design
• Strong, buttress thread union nuts

Product Highlights

This Spears ball valve has strong, buttress thread union nuts and is fully serviceable with replaceable components.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 2339-007
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Domestic/Import: Domestic
• End Style: Socket and FNPT
• Inlet to Outlet Length: 6-3/16 in
• Nominal Size: 3/4 in
• Pressure Rating: 235 psi
• Series: True Union
• Softgoods Material: FKM
• Temperature Rating: 140 deg F
• Top to Inlet Center: 2-5/8 in
• Trim Material: PVC Stem and PTFE Seat
• Type: Regular Style
• Manufacturer: Spears
• Item Number: 2339-007
• Brand: Spears
• Category: Ball Valve
• Material: PVC
• Product Group: True-Union Ball Valve
• Connections: Soc x FPT
• Seals: FKM
