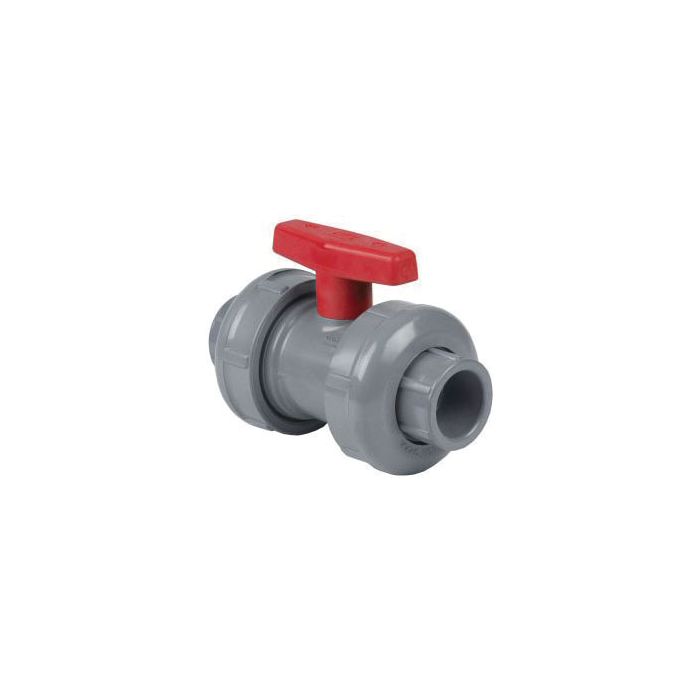

Spears 2329-020C 2 CPVC TU Ball Valve SOC/FPT EPDM

Product Description

The Spears 2329-020C is a two-inch CPVC true union ball valve designed for socket and FNPT end styles. This valve operates at a pressure rating of two hundred thirty-five psi and a maximum temperature of two hundred degrees Fahrenheit. It features a T-handle actuator and is suitable for various industrial and chemical applications.

• Reliable quarter-turn shut-off mechanism
• Versatile for chemical processing and general plumbing
• Full serviceability with replaceable components

Product Highlights

This valve is constructed from CPVC, offering chemical and corrosion resistance, making it ideal for demanding environments.

Product Information

Standard Information

• Brand: Spears
• MPN: 2329-020C

Technical Specifications

• Nominal Size: 2 inches
• Pressure Rating: 235 psi
• Temperature Rating: 200 degrees Fahrenheit
• Body Material: CPVC
• Ball Material: CPVC
• Softgoods Material: EPDM
• End Style: Socket and FNPT
• Inlet to Outlet Length: 8-13/16 inches
• Top to Inlet Center: 4-13/32 inches
• Actuator Type: T-Handle
• Series: True Union
