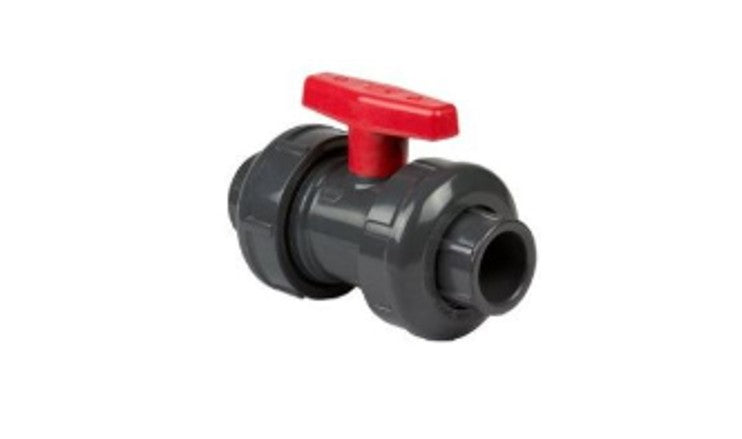

Spears 2329-020 PVC Schedule 80 True Union Ball Valves

Product Description

The Spears 2329-020 is a true union ball valve designed for use with PVC materials. This valve has a two-inch nominal size and features socket and threaded ends. The valve is made from EPDM and is suitable for use in applications where Schedule 80 PVC is required.

• True union ball valve with a regular style
• Socket and threaded ends for versatile connections
• Rated for 200 psi at seventy-three degrees Fahrenheit

Product Highlights

This valve can withstand higher pressures and is ideal for applications requiring thicker pipe materials. The Spears 2329-020 is a preferred choice in aquaculture and other plumbing settings where reliability and durability are critical.

Product Information

Standard Information

• Brand: Spears
• MPN: 2329-020
• Type: True Union Ball Valve
• Material: PVC with EPDM components

Technical Specifications

• Nominal Size: 2 inches
• Pressure Rating: 200 psi
• Temperature Rating: 140 degrees Fahrenheit
• Inlet to Outlet Length: 8-13/16 inches
• Top to Inlet Center Distance: 4-13/32 inches
• Actuator Type: T-Handle
• Domestic/Import: Domestic
• Standards: Conforms to ASTM D1784 and NSF certification for potable water
