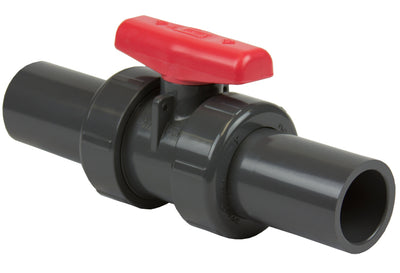

Spears 2329-012C 1-1/4 CPVC TU BALL VALVE SOC/FPT EPDM

Product Description

The Spears 2329-012C is a 1-1/4 inch CPVC true union ball valve with socket and FNPT ends. This valve is designed for use in a variety of applications, providing reliable flow control for both potable water and chemical processing.

• Meets NSF certification for potable water use.
• Constructed with chemical and corrosion-resistant materials.
• High-pressure rating of 235 psi and temperature rating up to 200 degrees Fahrenheit.

Product Highlights

This ball valve features a durable CPVC body and EPDM soft goods, ensuring longevity and performance.

Product Information

Standard Information

• Manufacturer: Spears
• Series: True Union

Technical Specifications

• Nominal Size: 1-1/4 inches
• End Style: Socket and FNPT
• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Pressure Rating: 235 psi
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 7-1/16 inches
• Top to Inlet Center: 2-31/32 inches
• Trim Material: CPVC Stem and PTFE Seat
• Softgoods Material: EPDM
• Color: Gray
• Domestic/Import: Domestic
