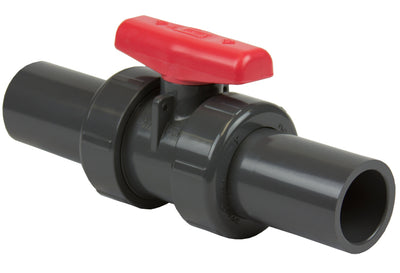

Spears 2329-010C True Union Ball Valve 1 Inch Socket and FNPT EPDM

Product Description

The Spears Manufacturing 2329-010C is a true union ball valve made for reliable performance in plumbing applications. This valve has a nominal size of one inch and features socket and FNPT end connections. It is constructed from CPVC with EPDM soft goods, ensuring both chemical resistance and durability.

• Type: True Union, Straight
• Seal Material: EPDM
• Pressure Rating: 235 psi

Product Highlights

This valve is ideal for a variety of industrial and chemical processing applications. It provides a quarter-turn shut-off feature and is designed for both socket and threaded connections.

Product Information

Standard Information

• Brand: Spears Manufacturing
• MPN: 2329-010C

Technical Specifications

• Body Material: CPVC
• Nominal Size: 1 inch x 1 inch
• End Connection: Socket/Threaded x Socket/Threaded
• Pressure Rating: 235 psi
• Temperature Rating: 200 deg F
• Port Type: Regular
• Actuator Type: T-Handle
• Individual Item Quantity: 1 per Pack
