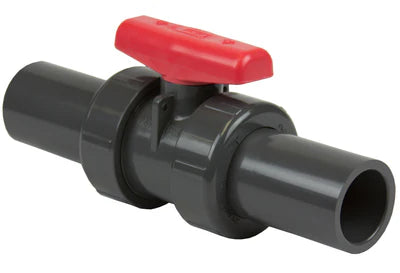

Spears 2329-007C 3/4 CPVC SCH80 Tuball Valv Socket/FNPT EPDM

Product Description

The Spears 2329-007C is a 3/4 inch CPVC SCH80 tuball valve. This valve features a socket and FNPT end style, making it suitable for various applications in plumbing and industrial settings. It operates at a pressure rating of two hundred thirty-five psi and can handle temperatures up to two hundred degrees Fahrenheit.

• High corrosion resistance
• Self-adjusting PTFE floating seat design
• Fully serviceable with replaceable components

Product Highlights

This valve is designed for reliable performance in both residential and commercial applications. Its construction allows for use in a variety of fluids, making it versatile for different installation needs.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2329-007C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Pressure Rating: 235 psi
• Temperature Rating: 200 deg F
• End Style: Socket and FNPT
• Nominal Size: 3/4 in
• Inlet to Outlet Length: 6-3/16 in
• Top to Inlet Center: 2-5/8 in
• Softgoods Material: EPDM
• Domestic/Import: Domestic
