Spears 2329-005C 1/2 CPVC TU BALL VALVE SOC/FPT EPDM

Product Description

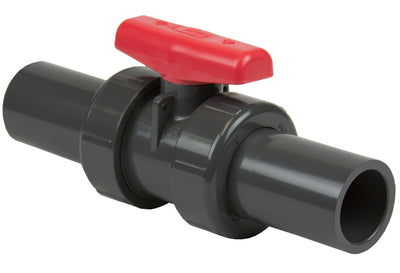

The Spears 2329-005C is a 1/2 inch CPVC True Union Ball Valve. This product features both socket and female NPT end styles and is designed to handle a pressure rating of up to 235 psi. It is suitable for use with fluids at temperatures reaching 200 degrees Fahrenheit. The valve includes a T-handle actuator for easy operation and is constructed from CPVC for strong chemical and corrosion resistance.

• Pressure rating of 235 psi
• Temperature rating of 200 degrees Fahrenheit
• CPVC construction for chemical and corrosion resistance

Product Highlights

This valve efficiently manages flow in various plumbing applications. It is NSF certified for potable water use and suitable for vacuum service.

Product Information

Standard Information

• Manufacturer: Spears
• Type: Regular Style

Technical Specifications

• MPN: 2329-005C
• Material: CPVC
• Ball Material: CPVC
• Softgoods Material: EPDM
• Actuator Type: T-Handle
• Nominal Size: 1/2 inch
• End Style: Socket and FNPT
• Inlet to Outlet Length: 5-3/16 inches
• Top to Inlet Center: 2-13/32 inches
• Domestic/Import: Domestic
• Trim Material: CPVC Stem and PTFE Seat
