Spears 2322-040C 4 CPVC TU BALL VALVE SOC EPDM

Product Description

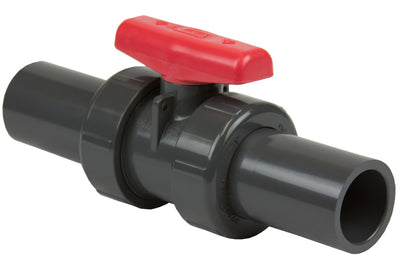

The Spears 2322-040C is a four-inch CPVC true union ball valve with socket end connections and EPDM soft goods. This valve is suitable for applications requiring a quarter-turn shut-off operation, including industrial and chemical processing. It is designed to handle pressure ratings up to one hundred fifty psi and temperatures up to two hundred degrees Fahrenheit.

• Chemical and corrosion resistant CPVC construction
• Fully serviceable and replaceable components
• NSF certified for potable water use

Product Highlights

This ball valve is built for durability and reliability in various plumbing systems.

Product Information

Standard Information

• Manufacturer: Spears
• Size: 4 in

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Pressure Rating: 150 psi
• Temperature Rating: 200 deg F
• Length from Inlet to Outlet: 13-3/16 in
• Top to Inlet Center: 5-19/32 in
• Trim Material: CPVC Stem and PTFE Seat
