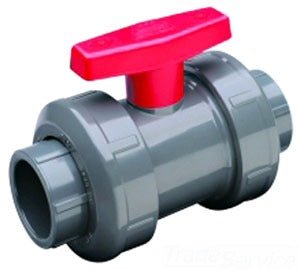

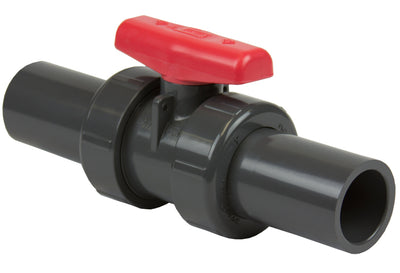

Spears 2322-030 3 PVC TU BALL VALVE SOC EPDM

Product Description

The Spears 2322-030 is a True Union ball valve designed for efficient shut-off control in a variety of piping applications. This valve features a three-inch nominal size and a socket end style for easy installation. Constructed from PVC, it operates under a pressure rating of 150 psi and is suitable for temperatures up to 140 degrees Fahrenheit. The T-handle actuator allows for quick operation and control of flow.

• PVC body and EPDM softgoods ensure durability.
• Chemical and corrosion resistant for versatile applications.
• NSF certified for potable water use.

Product Highlights

Perfect for use in industrial and chemical processing, this valve is both reliable and easy to maintain.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2322-030

Technical Specifications

• Nominal Size: 3 inches
• End Style: Socket
• Body Material: PVC
• Softgoods Material: EPDM
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit
• Inlet to Outlet Length: 11-15/16 inches
• Top to Inlet Center: 4-29/32 inches
• Actuator Type: T-Handle
• Series: True Union 2000
