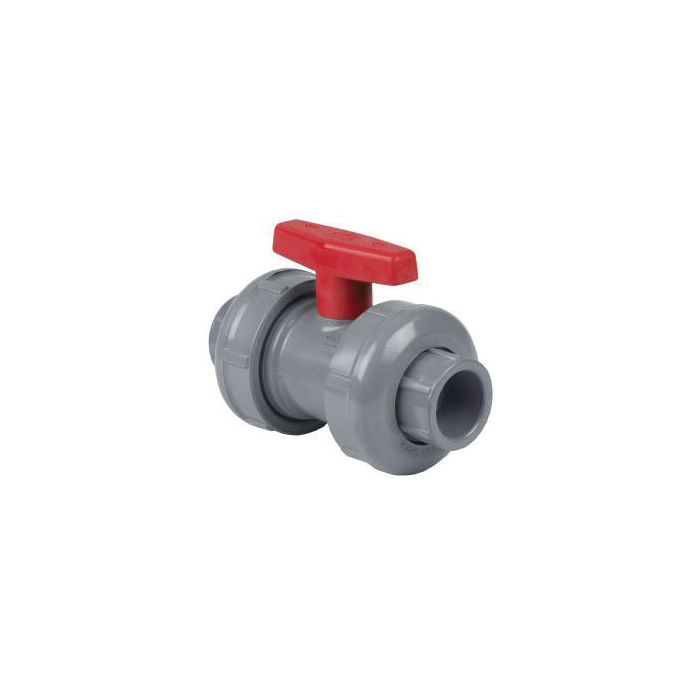

Spears 2322-025C 2-1/2 CPVC True Union Ball Valve Socket EPDM

Product Description

The Spears 2322-025C is a 2-1/2 inch CPVC True Union ball valve with socket ends and EPDM softgoods. This valve is suitable for a variety of industrial and chemical processing applications. It features a T-handle actuator for easy operation and is designed for both high pressure and temperature uses.

• Chemical and corrosion resistant CPVC construction
• Suitable for vacuum service
• Fully serviceable and equipped with replaceable components

Product Highlights

This ball valve is part of the True Union 2000 series, making it versatile for different setups. It has a pressure rating of one hundred fifty psi and operates effectively at temperatures up to two hundred degrees Fahrenheit.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2322-025C

Technical Specifications

• Nominal Size: 2-1/2 in
• End Style: Socket
• Ball Material: CPVC
• Body Material: CPVC
• Softgoods Material: EPDM
• Pressure Rating: 150 psi
• Temperature Rating: 200 deg F
• Inlet to Outlet Length: 11-15/16 in
• Top to Inlet Center: 5-27/32 in
