Spears 2229-015C 1-1/2 CPVC TU BALL CHK VLV SOC/FPT EPDM

Product Description

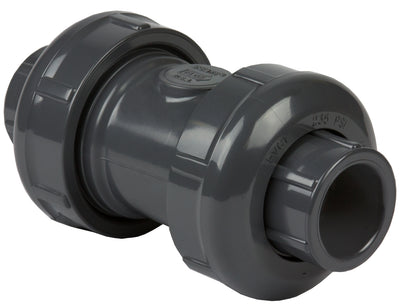

The Spears 2229-015C is a true union ball check valve designed for use in plumbing systems. This 1-1/2-inch valve features a CPVC body and EPDM softgoods, suitable for handling water. With a maximum pressure rating of 235 psi, it is built to last. The valve measures 8-1/16 inches from inlet to outlet and stands 4-3/8 inches high.

• Chemical and corrosion resistant CPVC construction.
• Strong, buttress thread union nuts.
• Fully serviceable and replaceable components.

Product Highlights

This valve is ideal for potable water use and is approved by NSF. It can be used in both horizontal and vertical positions, making it versatile for various installations.

Product Information

Standard Information

• Brand: Spears
• MPN: 2229-015C

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• Dimensions: 4-3/8 in H
• End Style: Socket/FNPT
• Inlet to Outlet Length: 8-1/16 in
• Media: Water
• Nominal Size: 1-1/2 in
• Pressure Rating: 235 psi
• Softgoods Material: EPDM
• Temperature Rating: 73 deg F
• Type: True Union Regular Style
• Domestic/Import: Domestic
