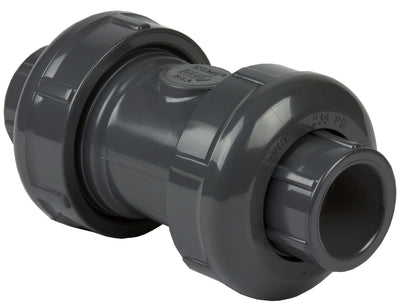

Spears 2229-010C 1 CPVC True Union Ball Check Valve SOC/FPT EPDM

Product Description

The Spears 2229-010C is a one inch CPVC true union ball check valve designed for use with socket and female NPT connections. This valve operates at a pressure rating of two hundred thirty-five psi and a temperature rating of seventy-three degrees Fahrenheit. Its inlet to outlet length measures six and a half inches, making it suitable for various applications. The body and ball are constructed from CPVC, and it includes EPDM softgoods for reliable sealing.

• True union design allows for easy maintenance and replacement.
• Chemical and corrosion-resistant construction for durability.
• Suitable for both horizontal and vertical installations.

Product Highlights

This valve is ideal for applications involving potable water use and is fully serviceable with replaceable components.

Product Information

Standard Information

• Brand: Spears
• MPN: 2229-010C

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• Dimensions: 3-7/16 in H
• End Style: Socket/FNPT
• Inlet to Outlet Length: 6-1/2 in
• Media: Water
• Nominal Size: 1 in
• Pressure Rating: 235 psi
• Softgoods Material: EPDM
• Temperature Rating: 73 deg F
• Type: True Union Regular Style
