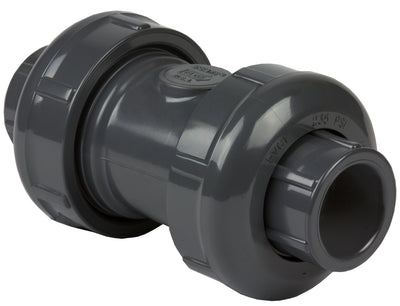

Spears 2222-030C 3 CPVC TU BALL CHECK VALVE SOCE EPDM

Product Description

The Spears 2222-030C is a 3-inch CPVC True Union Ball Check Valve with socket ends and EPDM soft goods. This valve is designed for water applications and features a pressure rating of 150 psi at a temperature of seventy-three degrees Fahrenheit.

• Chemical and corrosion resistant CPVC body
• Suitable for horizontal or vertical installations
• Designed for potable water use

Product Highlights

This valve allows for easy installation and maintenance. Its strong buttress thread union nuts ensure a secure connection, while the standard O-ring seat provides effective sealing and reliability.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2222-030C

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• Softgoods Material: EPDM
• Color: Gray
• Nominal Size: 3 in
• Pressure Rating: 150 psi
• Inlet to Outlet Length: 11-7/8 in
• Dimensions: 7-3/8 in H
• End Style: Socket
• Type: True Union Regular Style
