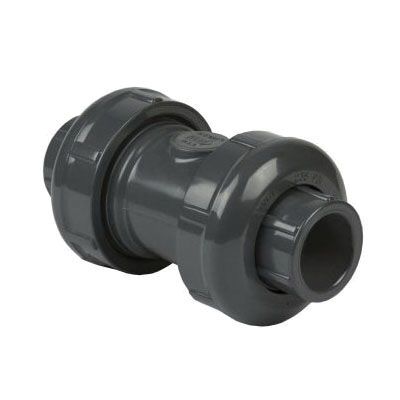

Spears 2222-025 PVC Schedule 80 True Union Ball Check Valve, 150 psi, 2-1/2 in

Product Description

The Spears 2222-025 is a true union ball check valve designed for reliable performance. This valve is made from PVC with EPDM softgoods, making it suitable for various applications including potable water service. The valve supports a maximum pressure rating of one hundred fifty psi and operates effectively in temperatures up to seventy-three degrees Fahrenheit.

• True union design for easy installation and maintenance.
• Composed of durable PVC for long-lasting service.
• Industry standard socket style ends for compatibility.

Product Highlights

This valve is ideal for horizontal or vertical installations. It is fully serviceable, allowing for easy replacement of components as needed.

Product Information

Standard Information

• Brand: Spears
• MPN: 2222-025

Technical Specifications

• Type: True Union Ball Check Valve
• Material: PVC
• O-Ring Material: EPDM
• Nominal Size: Two and one-half inches
• Pressure Rating: One hundred fifty psi
• Temperature Rating: Seventy-three degrees Fahrenheit

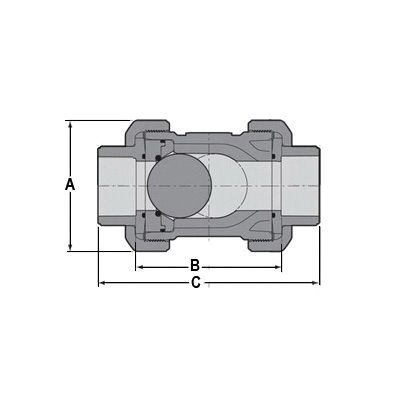

• Inlet to Outlet Length: Eleven and seven-eighths inches
• Overall Height: Seven and three-eighths inches
• Color: Gray
• Domestic/Import: Domestic
