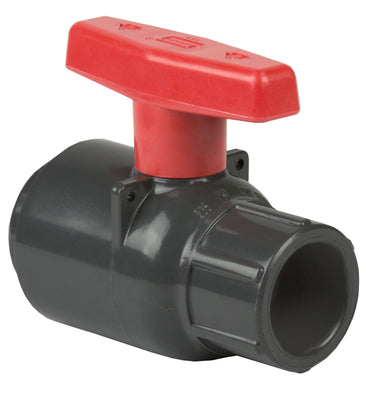

Spears 2132-040 4 PVC Compact Ball Valve SOC FKM

Product Description

The Spears 2132-040 is a four-inch PVC compact ball valve with socket connections designed for durability and efficiency. This valve features a T-handle actuator and is suitable for applications requiring a high level of reliability. It has a pressure rating of one hundred fifty psi and a temperature rating of one hundred forty degrees Fahrenheit. This valve is ideal for HVAC systems, plumbing installations, and industrial applications.

• Constructed from robust PVC and FKM materials
• Socket end style for easy installation
• Compact design for limited space applications

Product Highlights

The Spears 2132-040 ball valve offers secure sealing and is suitable for various liquid handling systems. Its high-performance design ensures effective flow control.

Product Information

Standard Information

• Brand: Spears
• MPN: 2132-040

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees F
• Nominal Size: 4 inches

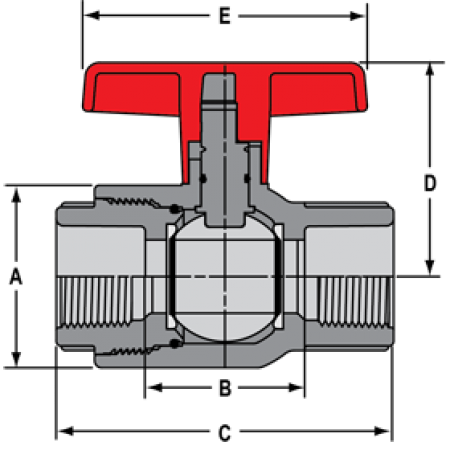

• Inlet to Outlet Length: 10-5/32 inches
• Top to Inlet Center: 6-5/8 inches
• End Style: Socket
• Domestic/Import: Domestic
• Trim Material: PVC Stem and PTFE Seat
