Spears 2132-020 2 pvc compact ball valve soc fkm

Product Description

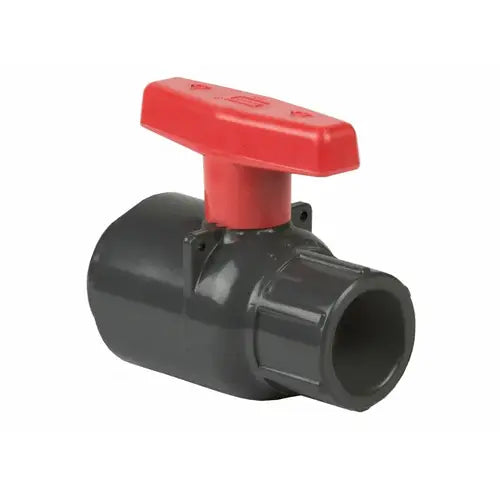

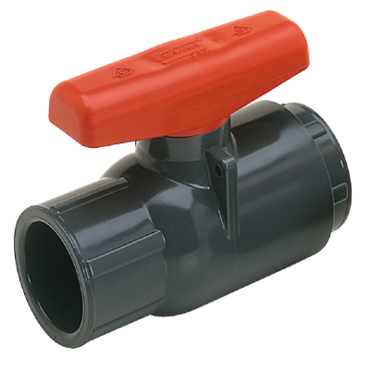

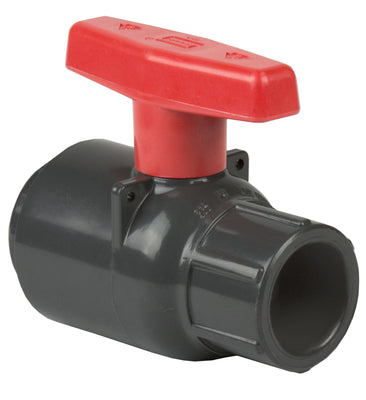

The SPEARS 2132-020 is a 2-inch compact ball valve. This regular ball valve features a socket, 235 psi, 140 deg F, T-Handle Actuator, PVC Ball, 6-5/16 in Inlet to Outlet Length, 4-5/16 in Top to Inlet Center, PVC Body, PVC Stem and PTFE Seat Trim, FKM, Gray, Domestic.

• Heavy bodied PVC or CPVC construction
• High impact polypropylene handle
• Full SCH 80/XH bore

Product Highlights

This quarter-turn shut-off valve is suitable for chemical, industrial and OEM applications. Factory-adjusted sealed units are available in IPS sizes 1/2 in through 2 in, with choice of either socket or threaded end connectors.

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 2132-020
• Country of Origin: Domestic

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 6-5/16 in
• Nominal Size: 2 in
• Pressure Rating: 235 psi
• Softgoods Material: FKM
• Temperature Rating: 140 deg F
• Top to Inlet Center: 4-5/16 in
• Trim Material: PVC Stem and PTFE Seat
• Type: Compact
• Manufacturer: Spears
• Item Number: 2132-020
• Brand: Spears
• Category: Valves Product
• Material: PVC
• Connections: Socket
• Seals: FKM
• Country of Origin: US
• Standards and Approvals: ASTM F1970 | NSF Approved
• Product Group: Compact & Single Union Ball
• Manufacturer's part number: 2132-020
• Item: 2 PVC Compact Ball Valve SOC FKM
• ManufacturerNumber: 2132-020
