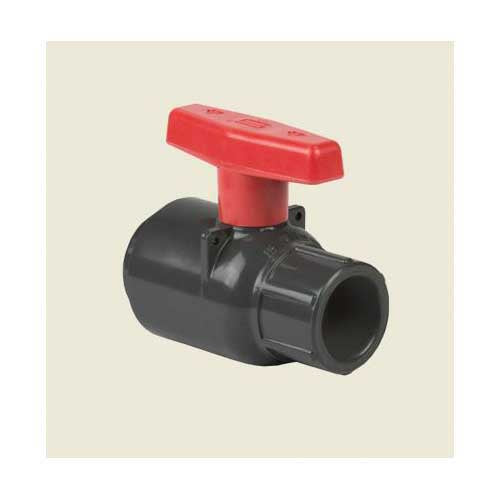

Spears 2132-010 1 PVC Compact Ball Valve SOC FKM

Product Description

The Spears 2132-010 is a one inch compact PVC ball valve with socket ends and FKM seals. This valve is suitable for a variety of plumbing and HVAC applications.

• Constructed from heavy bodied PVC or CPVC.
• Features a high impact polypropylene handle.
• Rated for a pressure of two hundred thirty-five psi and temperature of one hundred forty degrees Fahrenheit.

Product Highlights

This ball valve combines reliability and efficiency in one compact design, making it ideal for use in both residential and commercial settings.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2132-010

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 4-7/16 inches
• Nominal Size: 1 inch
• Pressure Rating: 235 psi
• Softgoods Material: FKM
• Temperature Rating: 140 degrees Fahrenheit
• Top to Inlet Center: 2-7/8 inches
• Trim Material: PVC Stem and PTFE Seat
• Type: Compact
