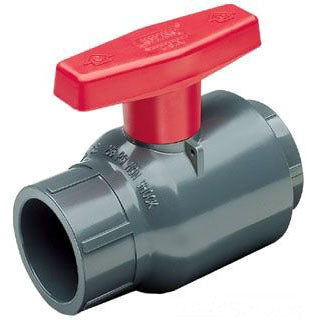

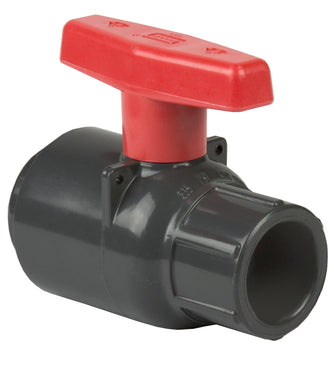

SPEARS 2131-015 Compact Regular Style Ball Valve With Handle 1-1/2 in FNPT

Product Description

The Spears 2131-015 is a compact regular style ball valve featuring a handle and a nominal size of one and one-half inches. This valve utilizes FNPT end style and is made from chemical and corrosion resistant PVC. It has a full-bore design suitable for industrial and OEM applications, including vacuum service. The maintenance-free sealed unit is assembled with a silicone-free, water-soluble lubricant.

• Chemical and corrosion resistant PVC construction
• High impact polypropylene handle
• SCH 80/XH full-bore design

Product Highlights

This valve is ideal for a variety of applications in industrial settings and ensures reliable performance.

Product Information

Standard Information

• Brand: Spears
• Nominal Size: 1-1/2 in

Technical Specifications

• End Style: FNPT
• Pressure Rating: 235 psi
• Body Material: PVC
• Softgoods Material: FKM
• Inlet to Outlet Length: 5-5/8 in
• Media: Water
• Series: Compact
• Temperature Rating: 140 deg F
• Top to Inlet Center: 3-11/16 in
• Trim Material: PVC Stem
• Type: Regular Style
• Application: Industrial and OEM Application
• Domestic/Import: Domestic
• Standards and Approvals: ASTM D1784 | ASTM F1970 | NSF Approved
• Handle Material: Polypropylene
• Actuation Type: 1/4 TURN
• Seat Material: PTFE
• Port Type: Regular
• Schedule: 80 S
• Model: 2131
