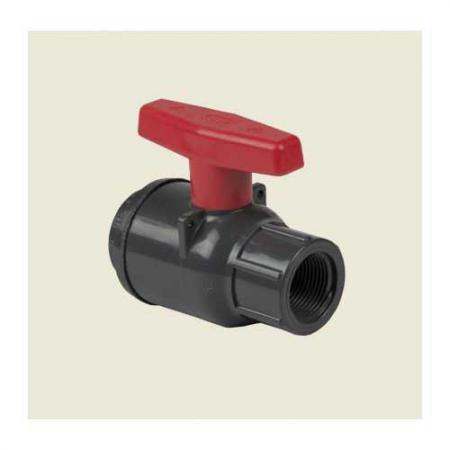

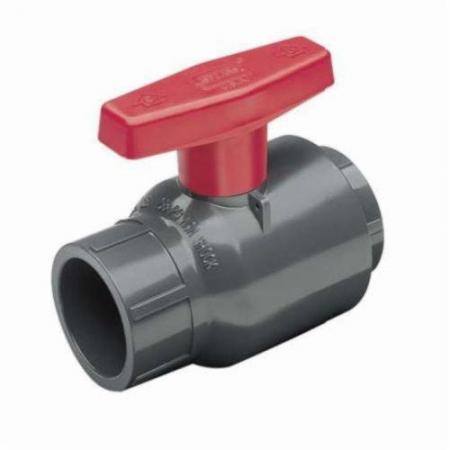

Spears 2131-007 3/4 PVC Compact Ball Valve THD FKM

Product Description

The Spears 2131-007 is a quarter-turn ball valve designed for plumbing applications. With a nominal size of three-fourths inches, this valve is constructed from durable PVC and features FKM soft goods. It can handle a pressure rating of up to 235 psi. The compact design simplifies installation, allowing for tight spaces while still providing reliable service.

• Constructed from chemical and corrosion-resistant PVC
• Maintenance-free sealed unit for long service life
• High impact polypropylene handle for ease of use

Product Highlights

This valve is suitable for residential or commercial plumbing systems, ensuring safety in water delivery.

Product Information

Standard Information

• Brand: Spears
• MPN: 2131-007

Technical Specifications

• Ball Material: PVC
• Body Material: PVC
• Color: Gray
• End Style: FNPT

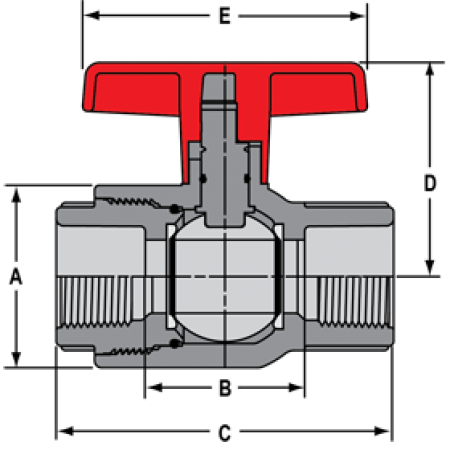

• Inlet to Outlet Length: 4-1/16 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 235 psi
• Series: Compact
• Softgoods Material: FKM
• Top to Inlet Center: 2-11/16 inches
• Domestic/Import: Domestic
