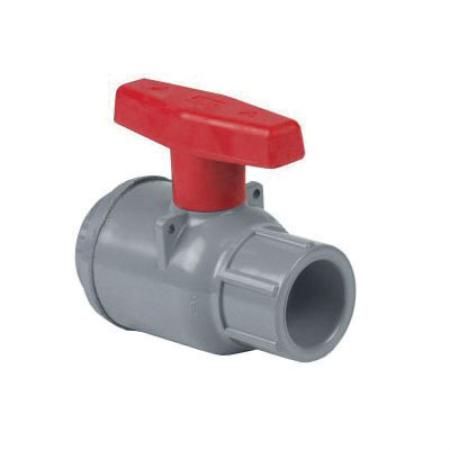

Spears 2122-030C 3 CPVC Compact Ball Valve SOC EPDM

Product Description

The Spears 2122-030C is a 3-inch CPVC Compact Ball Valve designed for socket end connection. This valve is suitable for applications where pressure up to 150 psi and temperatures up to 200 degrees Fahrenheit are required. It features a T-handle actuator, allowing for easy operation and control.

• Compact design for space-saving installation.
• EPDM soft goods for enhanced durability.
• NSF approved for safe use in potable water applications.

Product Highlights

This compact ball valve is ideal for both residential and commercial plumbing systems. The CPVC construction makes it resistant to corrosion and suitable for various fluids.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 2122-030C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Pressure Rating: 150 psi
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 7-15/16 inches
• Top to Inlet Center: 5-9/16 inches
• Trim Material: CPVC Stem and PTFE Seat
• End Style: Socket
• Domestic/Import: Domestic
• Color: Gray
