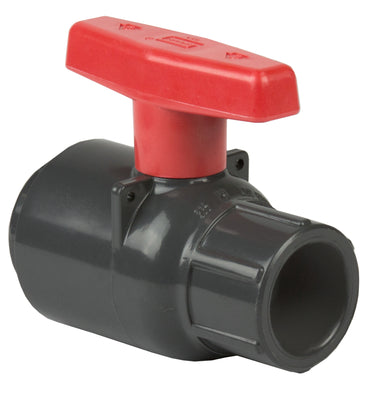

Spears 2122-030 PVC Schedule 80 Compact Ball Valve 3

Product Description

The Spears 2122-030 PVC Schedule 80 Compact Ball Valve is a three-inch valve with socket ends made from PVC and EPDM materials. This valve design is featured in aquaculture and various plumbing applications. The thicker and heavier Schedule 80 pipes are suitable for handling high pressure, rated at no less than two hundred psi at seventy-three degrees Fahrenheit. This configuration is commonly recommended for installations where compliance with local building codes is required.

• Compact design suitable for tight spaces
• Made with EPDM for versatility in temperature
• Rated for high pressure applications

Product Highlights

The Spears ball valve comes with a robust T-handle actuator, providing reliable operation under a variety of conditions.

Product Information

Standard Information

• Brand: Spears
• MPN: 2122-030

Technical Specifications

• Size: 3 inches
• Material: PVC Body, EPDM Softgoods
• Pressure Rating: 150 psi
• Temperature Range: 40 to 140 degrees Fahrenheit
• Inlet to Outlet Length: 7-15/16 inches
• Top to Inlet Center: 5-9/16 inches
• Actuator Type: T-Handle
• Socket Style: Socket Ends
• Type: Compact Ball Valve
• Standards Compliance: ASTM D 2467 and NSF Approved
