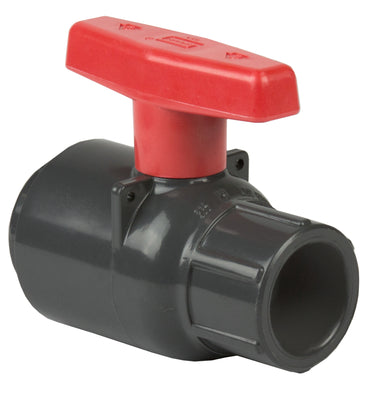

Spears 2122-007C 3/4 CPVC Compact Ball Valve SOC EPDM

Product Description

The Spears 2122-007C is a three-fourths inch CPVC compact ball valve designed for socket connections. This product operates at a pressure rating of 235 psi and a maximum temperature of 200 degrees Fahrenheit. The valve features a T-handle actuator for ease of operation. The compact ball design provides a lightweight solution without sacrificing performance.

• Made from heavy-bodied PVC and CPVC
• Includes a Safe-T-Shear® stem
• NSF approved for safe drinking water applications

Product Highlights

Ideal for plumbing systems that require reliable and efficient flow control.

Product Information

Standard Information

• Brand: Spears
• MPN: 2122-007C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 4-1/16 inches
• Nominal Size: 3/4 inches
• Pressure Rating: 235 psi
• Softgoods Material: EPDM
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 2-11/16 inches
• Trim Material: CPVC Stem and PTFE Seat
• Type: Compact
