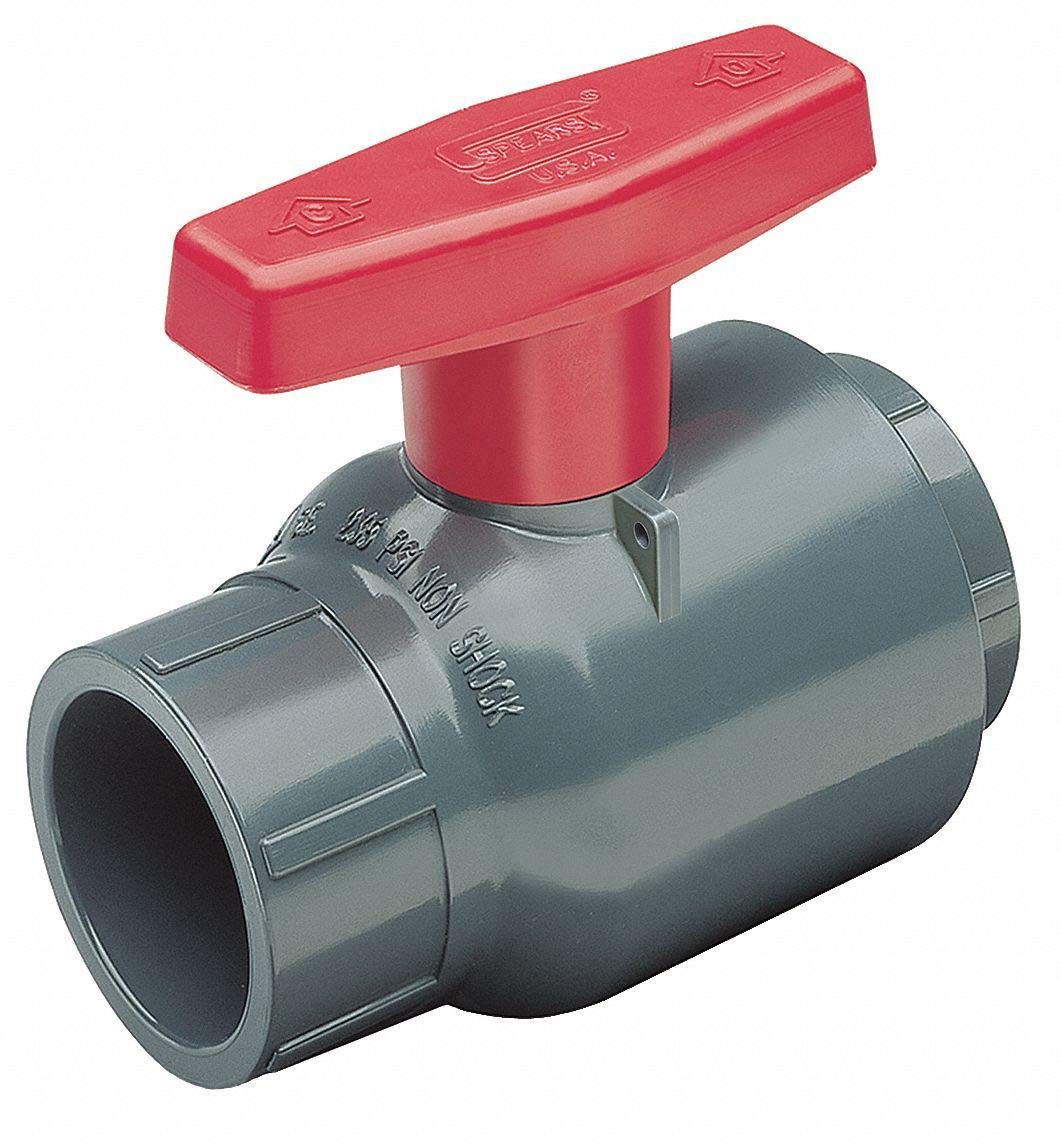

Spears 2122-007 PVC Socket Compact Ball Valve, Tee, 3/4 Pipe Size

Product Description

The Spears 2122-007 is a PVC socket compact ball valve designed for various plumbing applications. This valve is suitable for a three-fourth inch pipe size and offers reliable performance in both residential and commercial systems. The high pressure tolerance of two hundred thirty-five psi at seventy-three degrees Fahrenheit makes it versatile for various water flow systems.

• Body Material: PVC
• Port Type: Threaded
• Max Temperature: 140 degrees Fahrenheit

Product Highlights

This compact ball valve features a T-handle for easy operation and is compliant with NSF standards. Its design facilitates quick and efficient installation in various piping systems.

Product Information

Standard Information

• Manufacturer: Spears
• Model: 2122-007

Technical Specifications

• Nominal Size: 3/4 inch
• Pressure Rating: 235 psi
• Temperature Range: -40 to 140 degrees Fahrenheit
• Body Style: Inline
• Trim Material: PVC Stem and PTFE Seat
• Softgoods Material: EPDM
• Handle Type: Tee
• Actuator Type: T-Handle
