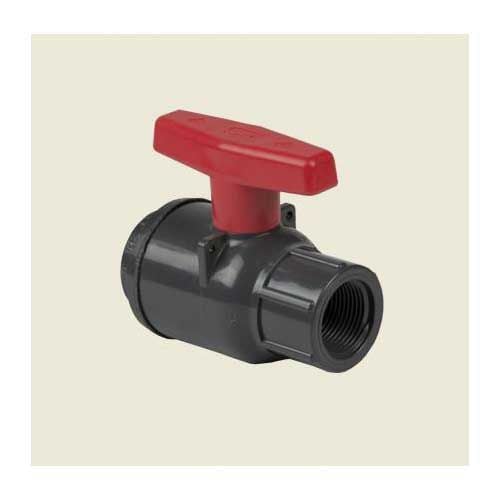

Spears 2121-015 Compact Regular Ball Valve 1-1/2 in Nominal FNPT End Style PVC Body EPDM Softgoods Domestic

Product Description

The Spears Compact Ball Valve with MPN 2121-015 is designed for plumbing and hydraulic applications. Its robust construction ensures reliable performance in multiple settings. This valve is made from PVC, which is resistant to corrosion and offers excellent durability.

• Compact design suitable for tight spaces
• Pressure rating of 235 psi
• Temperature range from -40 to 140 degrees F

Product Highlights

This compact ball valve features an FNPT connection, making it easy to install into existing piping systems. With its high-quality EPDM seals, the valve offers excellent leak resistance.

Product Information

Standard Information

• Brand: Spears
• MPN: 2121-015

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• O-Ring Material: EPDM
• Pressure Rating: 235 psi
• Temperature Rating: 140 degrees F
• Inlet to Outlet Length: 5-5/8 inches
• Nominal Size: 1-1/2 inches
• End Style: FNPT
• Trim Material: PVC Stem and PTFE Seat
