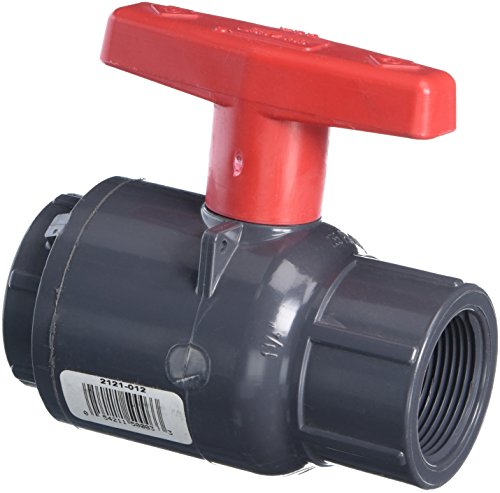

Spears 2121-012 PVC Schedule 80 Compact Ball Valves

Product Description

The Spears 2121-012 PVC Schedule 80 Compact Ball Valve is designed for reliable flow control in plumbing systems. This valve has a nominal size of one and one-quarter inches and features EPDM seals to ensure a tight seal under pressure. Engineered for Schedule 80 PVC piping, it can withstand pressures up to 235 psi at temperatures up to one hundred forty degrees Fahrenheit.

• Compact design minimizes space usage
• Threaded ends for easy installation
• Constructed from durable PVC for robust performance

Product Highlights

This valve is suitable for various applications, including aquaculture and cold water systems. Its thick wall design allows it to handle higher pressures than standard valves.

Product Information

Standard Information

• Manufacturer: Spears
• Type: Compact Ball Valve

Technical Specifications

• MPN: 2121-012
• Size: 1-1/4 inches
• Pressure Rating: 235 psi
• Temperature Rating: 140°F
• Body Material: PVC
• Ball Material: PVC
• Softgoods Material: EPDM
• End Style: FNPT
• Length from Inlet to Outlet: 4-15/16 inches
• Top to Inlet Center: 3-5/16 inches
