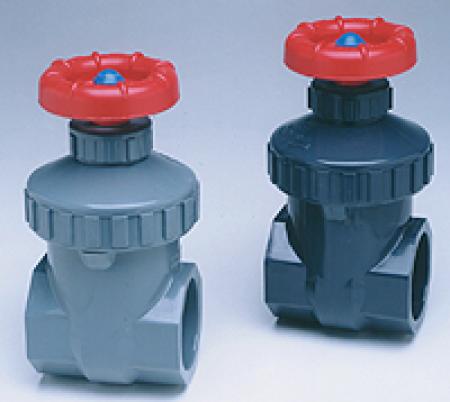

Spears 2011-015 1-1/2 PVC Gate Valve Thd Buna

Product Description

The Spears 2011-015 is a 1-1/2 inch PVC gate valve designed for efficient flow regulation in plumbing systems. This valve features FNPT end style and is rated for a pressure capacity of 200 psi. Ideal for applications involving water and other non-potable liquids, it uses Buna-N O-rings to ensure a tight seal.

• Durable PVC body and trim
• Handwheel actuator for easy operation
• Non-rising stem for space-efficient installation

Product Highlights

This valve is suitable for both residential and commercial plumbing installations. Its robust construction allows it to withstand various environmental conditions.

Product Information

Standard Information

• Manufacturer: Spears
• Model Number: 2011-015

Technical Specifications

• Actuator Type: Handwheel
• Body Material: PVC
• Pressure Rating: 200 psi
• Temperature Rating: 140 deg F
• Nominal Size: 1-1/2 in
• End Style: FNPT

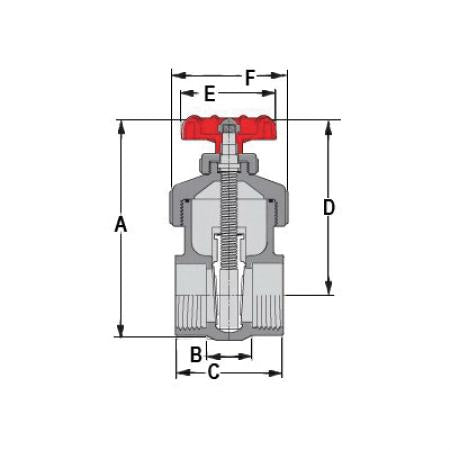

• Inlet to Outlet Length: 3-3/4 in
• Hand Wheel Diameter: 3-7/16 in
• Softgoods Material: Buna-N O-ring
• Top to Inlet Center: 6-9/16 in
• Trim Material: PVC
