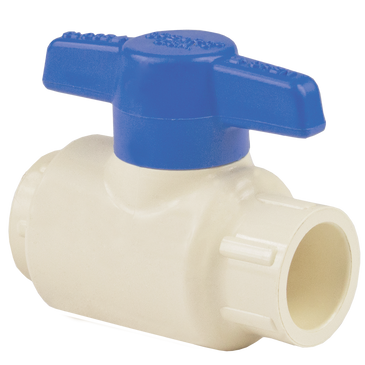

Spears 1922R-005 1/2 CTS CPVC Ball Valve SOC EPDM Residential

Product Description

The Spears 1922R-005 is a 1/2 inch nominal CPVC ball valve designed for residential usage. This valve is made from lead-free materials, featuring a CPVC body and EPDM soft goods that ensure durability and longevity. It features an inlet to outlet length of two and one thirty-second inches, and a pressure rating of one hundred psi, making it suitable for high temperature and pressure applications. This valve can handle non-shock water at temperatures up to one hundred eighty degrees Fahrenheit.

• Lead-free construction for safety
• EPDM O-ring provides secure sealing
• Meets ASTM D1784 and NSF approval standards

Product Highlights

This valve offers exceptional corrosion resistance and energy savings. Its design allows for a higher flow capacity and lower system costs. It is suitable for both residential applications and commercial hot water systems.

Product Information

Standard Information

• Manufacturer: Spears
• Nominal Size: 1/2 inches

Technical Specifications

• Ball Material: CPVC
• Body Material: CPVC
• Color: Tan
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 2-1/32 inches
• Pressure Rating: 100 psi
• Softgoods Material: EPDM
• Top to Inlet Center: 1-9/32 inches
