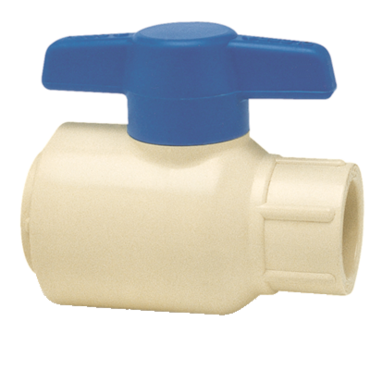

Spears 1922-015 Ball Valve, 1-1/2 CTS CPVC SOC EPDM

Product Description

The Spears Manufacturing 1922-015 is a ball valve designed for various applications including potable water and commercial hot water distribution systems. This valve features a one-piece construction for durability and reliability. With a nominal size of one and one-half inches, it is constructed from CPVC material, which offers superior corrosion resistance.

• Designed for socket x socket connections
• Rated for a temperature of up to one hundred forty degrees Fahrenheit
• Pressure rating of one hundred PSI at one hundred eighty degrees Fahrenheit

Product Highlights

This ball valve is ideal for hot and cold water systems. It includes a silicone-free, water-soluble lubricant that enhances its performance without contaminants.

Product Information

Standard Information

• Brand: Spears Manufacturing
• MPN: 1922-015

Technical Specifications

• Actuation Type: 1/4 Turn
• Body Material: CPVC
• Seat Material: PTFE
• Seal Material: EPDM O-Ring
• Temperature Rating: 140 Deg F
• Pressure Rating: 100 PSI at 180 Deg F
• Inclusions/Features: Silicone-Free, Water Soluble Lubricant
• Nominal Size: 1-1/2 Inch
• End Connection: Socket x Socket
• End to End Distance: 4-5/8 Inch
• Applicable Standard: NSF 14/61/372
