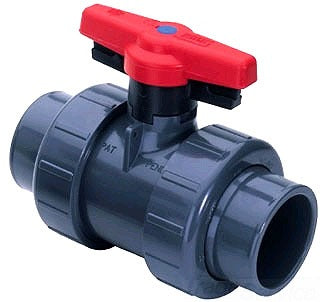

Spears 1829-020C 2 CPVC TU2K IND BALL VALVE SOC/FPT EPDM

Product Description

The Spears 1829-020C is a highly functional 2-inch CPVC True Union Industrial Ball Valve designed for socket and FNPT connections. It features a durable CPVC body and EPDM softgoods, suitable for various applications in plumbing, HVAC, and industrial settings. This valve ensures reliable performance up to 235 psi at temperatures of 200 degrees Fahrenheit. It is ideal for both horizontal and vertical installations.

• Chemical and corrosion-resistant construction
• Fully serviceable with replaceable components
• Compatible with vacuum service

Product Highlights

This valve includes strong buttress thread union nuts and employs a standard O-ring seat for a secure and leak-free operation. Its design allows for easy maintenance while ensuring excellent flow control.

Product Information

Standard Information

• Manufacturer: Spears
• Type: True Union 2000 Industrial Ball Valve

Technical Specifications

• Item Number: 1829-020C
• Nominal Size: 2 inches
• Body Material: CPVC
• Ball Material: CPVC
• End Style: Socket and FNPT
• Pressure Rating: 235 psi
• Temperature Rating: 200 degrees Fahrenheit
• Softgoods Material: EPDM
• Inlet to Outlet Length: 7-3/4 inches
• Top to Inlet Center: 4-1/2 inches
• Color: Gray
• Domestic/Import: Domestic
