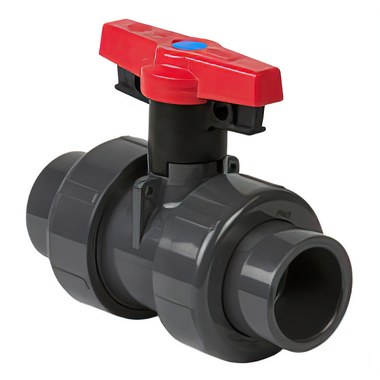

Spears 1829015 1-1/2 PVC-EPDM TRUE UNION BALL VALVE

Product Description

The Spears brand 1829015 is a 1-1/2 inches PVC-EPDM true union ball valve designed for commercial and industrial applications. This valve features a T-handle actuator that allows for easy operation and maintenance.

• Constructed with chemical and corrosion resistant PVC.
• Suitable for installations in both horizontal and vertical orientations.
• Assembled with silicone-free, water-soluble lubricant.

Product Highlights

The Spears 1829015 ensures secure and leak-free connections in various plumbing systems.

Product Information

Standard Information

• Brand: Spears
• Nominal Size: 1-1/2 inches

Technical Specifications

• Series: True Union 2000
• Body Material: PVC
• Ball Material: PVC
• Actuator Type: T-Handle
• Pressure Rating: 235 psi
• Temperature Rating: 140 degrees F
• End Style: Socket and FNPT
• Inlet to Outlet Length: 6-1/4 inches
• Top to Inlet Center: 4 inches
• Softgoods Material: EPDM
• Color: Gray
• Domestic/Import: Domestic
