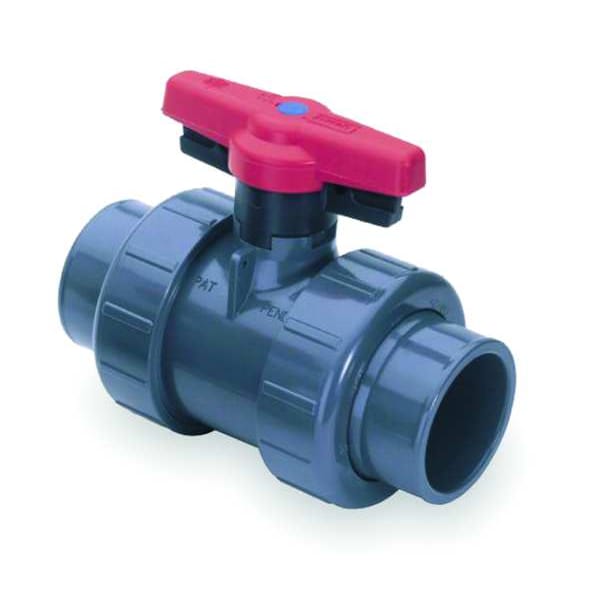

Spears 1829-005 1/2 PVC-EPDM TRUE UNION BALL VALVE

Product Description

The Spears 1829-005 is a 1/2 inch PVC-EPDM true union ball valve designed for industrial applications. It features socket and FNPT end styles, suitable for various installation types.

• Constructed from durable PVC with EPDM softgoods.
• Provides a pressure rating of 235 psi and a temperature rating of up to 140 degrees Fahrenheit.
• Includes a T-handle actuator for easy operation.

Product Highlights

This ball valve offers versatility in plumbing systems. It is compatible with other true union 2000 series components and allows for easy inline replacements.

Product Information

Standard Information

• Brand: Spears
• MPN: 1829-005

Technical Specifications

• Nominal Size: 1/2 inch
• Body Material: PVC
• Ball Material: PVC
• O-Ring Material: EPDM
• End Style: Socket and FNPT
• Pressure Rating: 235 psi
• Temperature Rating: 140 degrees Fahrenheit
• Length from Inlet to Outlet: 4-3/16 inches
• Height from Top to Inlet Center: 2-9/16 inches
• Series: True Union 2000
• Actuator Type: T-Handle
• Domestic/Import: Domestic
