Spears 1823-040 4 PVC TU2K IND BALL VALVE FLANGED EPDM

Product Description

The Spears 1823-040 is a 4-inch true union industrial ball valve. This product features a PVC body and flanged end style designed for reliable performance in a variety of applications. It is rated for a pressure of 150 psi and a temperature of up to 140 degrees Fahrenheit. The valve utilizes EPDM softgoods, making it suitable for various chemical and fluid transfer tasks.

• Nominal size of four inches
• Flanged connections for easy installation
• Compatible with both horizontal and vertical setups

Product Highlights

This true union ball valve allows for easy maintenance and replacement without disturbing the piping system.

Product Information

Standard Information

• Brand: Spears
• MPN: 1823-040

Technical Specifications

• Actuator Type: T-Handle
• Body Material: PVC
• Pressure Rating: 150 psi
• Temperature Rating: 140 degrees Fahrenheit

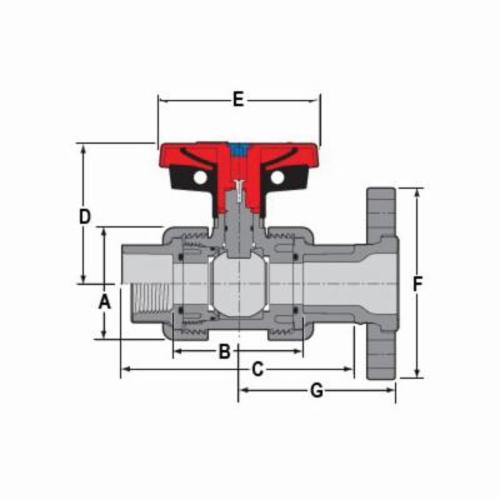

• Top to Inlet Center Measurement: 6-3/4 inches
• Softgoods Material: EPDM
• Series: True Union 2000
• End Style: Flanged
