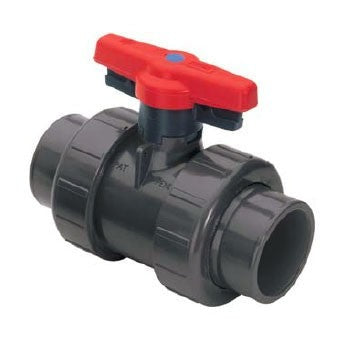

Spears 1822-060 True Union 2000 Industrial Ball Valve Socket EPDM (6 in)

Product Description

Spears 1822-060 is a True Union 2000 industrial ball valve featuring a 6 in nominal socket end PVC body and EPDM softgoods. The valve uses a PVC ball and PVC stem with PTFE seat trim, operates with a T-handle actuator, and is rated for 150 psi and 140 deg F. Inlet-to-outlet length is 17-1/8 in with an 8-1/8 in top-to-inlet-center; assembled with silicone-free, water-soluble lubricant and suitable for vacuum service.

• PVC body and ball with PVC stem and PTFE seat trim; EPDM O-ring seals
• 150 psi pressure rating, 140 deg F temperature rating; inlet-to-outlet 17-1/8 in; top-to-inlet-center 8-1/8 in
• True union socket ends with T-handle actuator; suitable for horizontal or vertical installation and vacuum service

Product Highlights

True Union 2000 design, 6 in socket PVC body, EPDM seals, T-handle operation, 150 psi working pressure

Product Information

Standard Information

• Brand: SPEARS
• Manufacturer Part Number: 1822-060
• Country of Origin: Domestic
