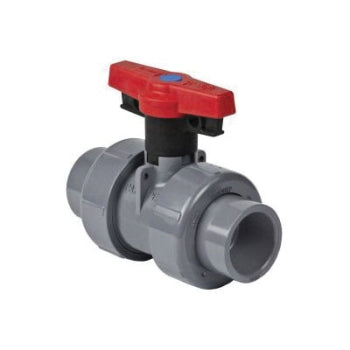

Spears 1822-025C 2-1/2 CPVC TU2K IND BALL VALVE SOC EPDM

Product Description

The Spears 1822-025C is a 2-1/2 inch CPVC True Union industrial ball valve. This valve features socket ends and is designed for a pressure rating of up to two hundred thirty-five psi and temperature rating of two hundred degrees Fahrenheit. The T-handle actuator allows for easy operation and maintenance.

• CPVC body and stem provide durability.
• Fully serviceable with replaceable components.
• Suitable for horizontal or vertical installation.

Product Highlights

The Spears 1822-025C offers reliable performance for industrial applications, ensuring a chemical and corrosion-resistant construction.

Product Information

Standard Information

• Brand: Spears
• MPN: 1822-025C

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Color: Gray
• Nominal Size: 2-1/2 in
• Pressure Rating: 235 psi
• Temperature Rating: 200 deg F
• Inlet to Outlet Length: 10-9/16 in
• Top to Inlet Center: 5-7/8 in
• Softgoods Material: EPDM
• Trim Material: CPVC Stem and PTFE Seat
• Domestic/Import: Domestic
• Type: Industrial
