Spears 1622-020C 2 CPVC Y-Check Valve SOC EPDM

Product Description

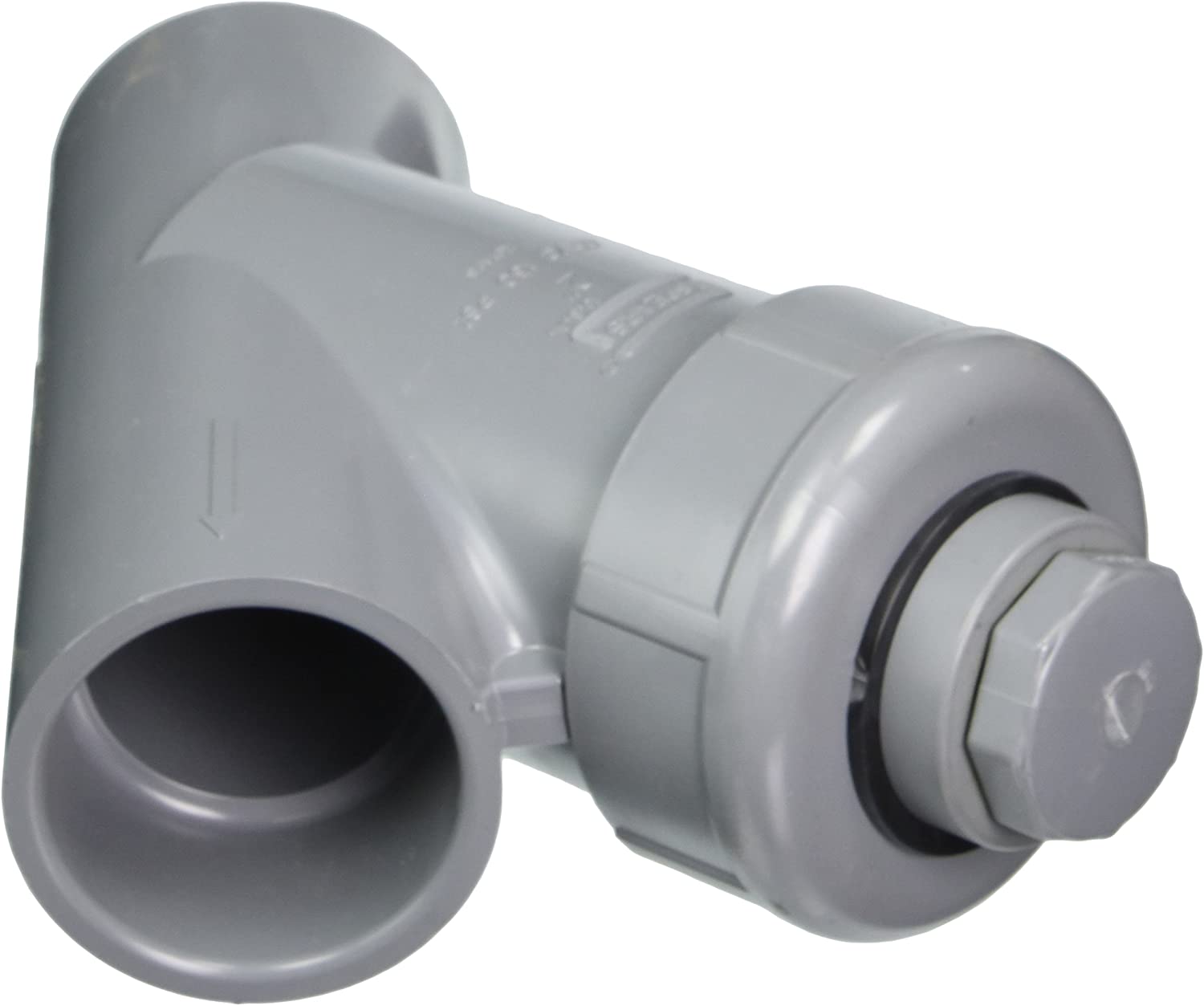

The Spears Y-Check Valve, model 1622-020C, is a two-inch nominal valve featuring socket ends. This product is designed to handle a pressure rating of 150 psi and a temperature rating of 200 degrees Fahrenheit. The inlet to outlet length measures seven and a half inches, with the top to inlet center being five and a half inches. The body and trim are made of CPVC, while the seat includes an EPDM/FKM O-ring.

• Chemical and corrosion resistant materials
• Easy access cap for maintenance
• Compatible for horizontal or vertical installations

Product Highlights

This valve is suitable for plumbing applications where reliable backflow prevention is required. Its durable construction makes it ideal for use in residential and commercial systems.

Product Information

Standard Information

• Brand: Spears
• MPN: 1622-020C

Technical Specifications

• Body Material: CPVC
• Color: Gray
• Domestic/Import: Domestic
• End Style: Socket
• Inlet to Outlet Length: 7.5 inches
• Nominal Size: 2 inches
• Pressure Rating: 150 psi
• Softgoods Material: EPDM/FKM O-Ring, Seat
• Temperature Rating: 200 degrees Fahrenheit
• Top to Inlet Center: 5.5 inches
• Trim Material: CPVC
