Spears 1529-002C 1/4 CPVC Lab Valve EPDM W/Adapter Kit

Product Description

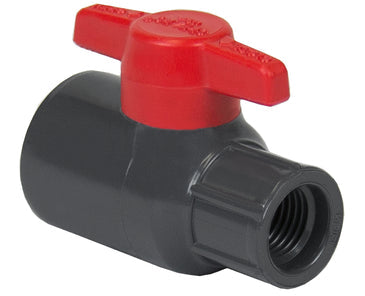

Spears 1529-002C is a 1/4 inch CPVC lab valve with EPDM O-ring and adapter kit. This product is designed for reliable performance in laboratory settings. It features a T-handle actuator and is rated for pressures up to 150 psi, handling temperatures up to 200 degrees Fahrenheit. The valve's compact design allows for easy installation in tight spaces.

• Chemical and corrosion-resistant construction
• Maintenance-free sealed unit
• Assembled with silicone-free, water-soluble lubricant

Product Highlights

The Spears lab valve ensures safety and durability in demanding environments. Its EPDM components provide excellent sealing properties, minimizing the risk of leaks. The full bore design promotes unrestricted flow, making it ideal for various fluid handling applications.

Product Information

Standard Information

• Manufacturer: Spears
• UOM: Each

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: CPVC
• Body Material: CPVC
• Pressure Rating: 150 psi
• Temperature Rating: 200 degrees Fahrenheit
• Inlet to Outlet Length: 3-7/8 inches
• Nominal Size: 1/4 inch
• Softgoods Material: EPDM
• O-Ring: Valve only Socket Ends
• End Style: MNPT x Tube Barb Adapter
• Trim Material: CPVC Stem and PTFE Seat
