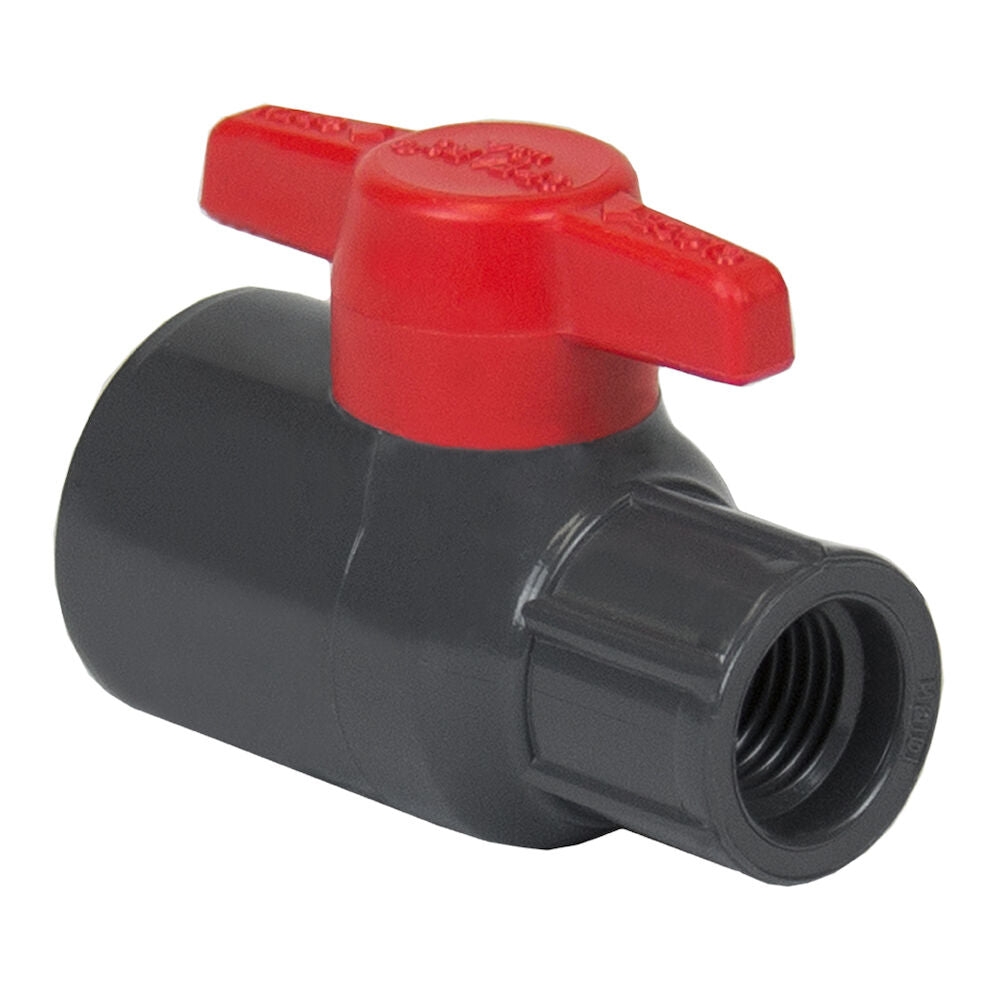

Spears 1521-002 1/4 PVC Lab Valve THD EPDM

Product Description

The Spears Lab Ball Valve, MPN 1521-002, is designed for applications requiring precise and reliable control of fluid flow. This valve features a nominal size of one quarter inch with female National Pipe Tapered (FNPT) ends. It has a pressure rating of one hundred fifty psi and can withstand temperatures up to one hundred forty degrees Fahrenheit.

• Chemical and corrosion-resistant PVC construction
• High-impact polypropylene T-handle for easy operation
• Maintenance-free sealed unit design

Product Highlights

This valve is ideal for laboratory applications. Its durable PVC body and EPDM O-ring ensure long-lasting performance while its SCH 80 full bore design allows for maximum flow.

Product Information

Standard Information

• Manufacturer: Spears
• MPN: 1521-002

Technical Specifications

• Actuator Type: T-Handle
• Ball Material: PVC
• Body Material: PVC
• Pressure Rating: 150 psi
• Temperature Rating: 140 deg F
• Inlet to Outlet Length: 2-1/8 inches
• Nominal Size: 1/4 inches
• Trim Material: PVC Stem and PTFE Seat
• Domestic/Import: Domestic
• Softgoods Material: EPDM
