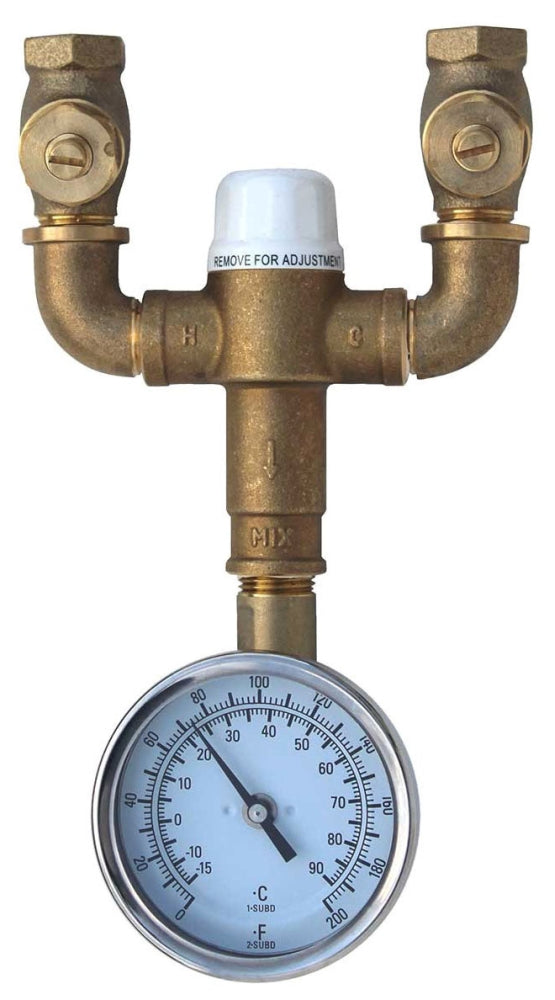

Speakman SEF-TW Thermostatic Mixing Valve Kit

Product Description

The Speakman SEF-TW is a thermostatic mixing valve kit designed for providing tepid water to eyewash stations. This kit is essential for safely blending hot and cold water for emergency use.

• Compatible with Speakman Eyewash Faucets
• Includes adjustable set point for temperature control
• Lead-free brass construction

Product Highlights

This mixing valve is efficient and safe for emergency eyewash applications.

Product Information

Standard Information

• Brand: Speakman
• MPN: SEF-TW

Technical Specifications

• Type: Thermostatic
• Nominal Size: 1/2 Inch
• End Connection: Female Threaded x Female Threaded
• Body Material: Brass
• Flow Rate: 7 GPM, 5 GPM (Cold Water Bypass)
• Set Temperature Range: 85 Deg F
• Temperature Rating: 120 to 180 Deg F (Hot Water Inlet), 40 to 70 Deg F (Cold Water Inlet), 65 to 95 Deg F (Outlet Water)
• Pressure Rating: 125 PSI
• Application: Eyewash Faucet
• Applicable Standard: ASSE 1071, CSA B125.3, NSF 372, CUPC
• Lead-Free: Yes
• Overall Height: 8-3/8 Inch
• Inclusions: Includes STW-370, (3) 1/2 Inch x 1-1/2 Inch nipple, (2) bushing, (1) elbow, (3) hose, (1) mounting bracket, (2) tee, (1) adapter, (1) reducing nipple
