Product Description

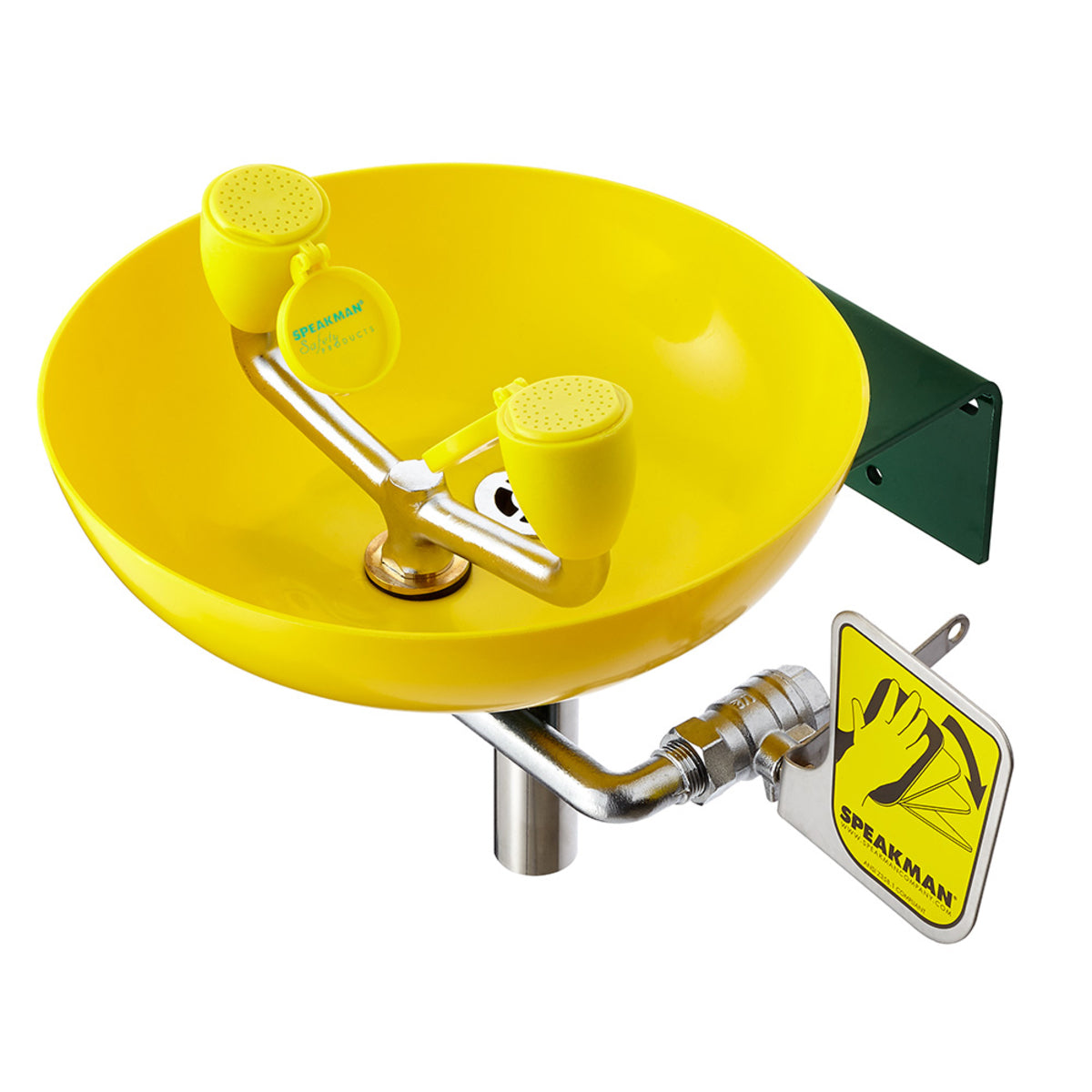

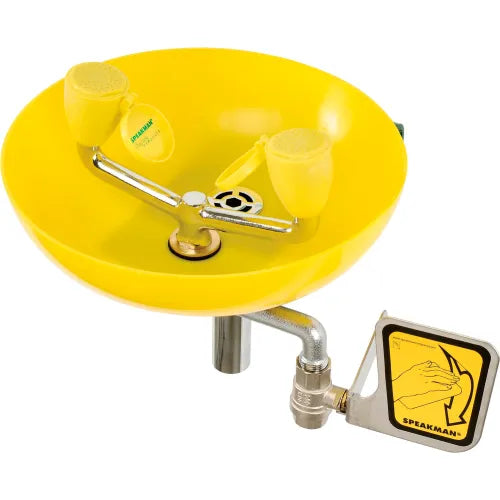

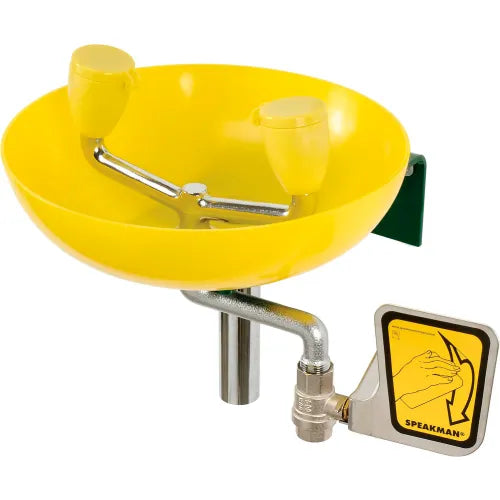

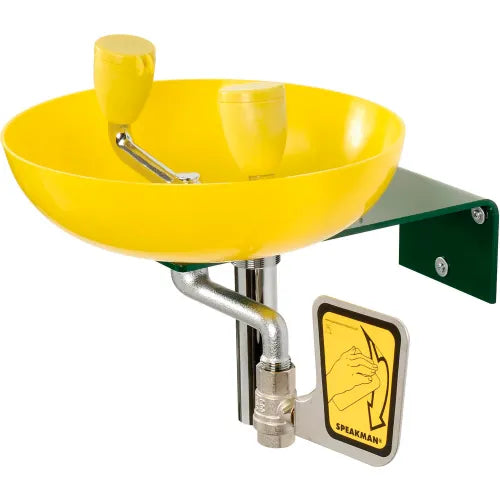

The SPEAKMAN SE-495 traditional series round bowl eye/face wash stations provide high-level performance. These wall-mounted units feature dual spray heads with automatic flow controls and flip-top dust covers. The aerated water flow allows soft flowing water to provide a wider coverage, cleaning full facial areas. Equipped with a stay-open ball valve activated by a paddle handle for hands-free operation.
- Yellow plastic round bowl
- Automatic flow controls
- Wall mounted
- Flip top dust covers
Product Highlights
Wall-mounted eye/face wash station with dual spray heads, automatic flow controls, and a stay-open ball valve for hands-free operation. Meets ANSI/ISEA Z385.1 and OSHA compliance.
Product Information
Standard Information
-
Brand: SPEAKMAN
-
Manufacturer Part Number: SE-495
-
Country of Origin: China
Technical Specifications
-
Type: Eye & Face Wash Station
-
Brand: Speakman
-
Includes: Yellow Plastic Round Bowl, Automatic Flow Controls, Flip Top Dust covers
-
Valve Type: Chrome Plated Brass
-
Depth: 15-1/4 in
-
Description: Traditional Series Eye/Face Wash
-
Mixing Valve: None
-
Bowl Material: ABS Plastic
-
Pipe Material: Chrome Plated Brass
-
Number of Heads: 2
-
Inlet Size: 1/2 NPT in
-
Fitting Material: Chrome Plated Brass
-
Eyewash Flow Rate: 4.5 gal/min
-
Mounting Location: Wall Mount
-
Eyewash Activation: Push Handle
-
Head Diameter: 1-1/2 in
-
Eye/Face Wash Inlet: 1/2" NPT Female
-
Eye/Face Wash Valve: 1/2" NPT Female Brass, Chrome Plated
-
Eyewash Flow Pressure: 30 psi
-
Eyewash Handle Material: Stainless Steel
-
ADA Compliant: No
-
Eye/Face Wash Spray Heads: (2) Yellow ABS Plastic Spray Outlets, Flip-Top Dust Caps
-
Manufacturers Part Number: SE-495
-
ARRA Certified: Yes
-
OSHA Certified: Yes
-
ANSI Certification: ANSI Z358.1
-
Width: 14.87
-
Height: 11.25
-
Length: 14.43
-
Assembly: Assembled
-
Coverage: Eyes and Face
-
Mounting: Wall
-
Bowl Diameter: 13 in
-
Flow Type: Aerated
-
Environment: General Purpose
-
Mount Style: Recessed
-
Connection Size: 1/2" NPT Female
-
Connection Type: Threaded Pipe
-
Flow Rate (GPM): 4.5 GPM @ 30 PSI
-
Handle Material: Stainless Steel
-
Inlet Pipe Size: 1/2 in
-
Number of Spray Heads: 2
-
Self-Cleaning Nozzles: Yes
-
Handle Placement: Side
-
Handles Included: Yes
-
Inlet Connection: 1/2 in NPT Female
-
Spray Head Style: Uncovered
-
Assembly Required: No
-
Installation Type: Wall Mounted
-
Number of Handles: 1
-
Shower Activation: Push Handle
-
Spray Head Diameter: 1 1/2 in
-
Spray Head Material: Plastic
-
Eye Wash Activates By: Push Handle
-
Eyewash Bowl Material: Plastic
-
Inlet Connection Type: 1/2 in NPT Female
-
Material of Construction: Stainless Steel, Brass, Plastic & Steel
-
Collection: Traditional Series
-
Product style: Industrial
-
Activation Type: Push
-
Valve Included: Yes
-
Country of Origin: China
-
Meets ANSI Z358.1: Meets ANSI Z358.1
-
Safety Product Type: Eye Wash Station
-
Trade Name: Eyesaver®
