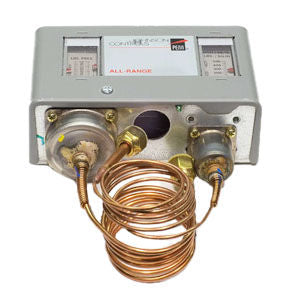

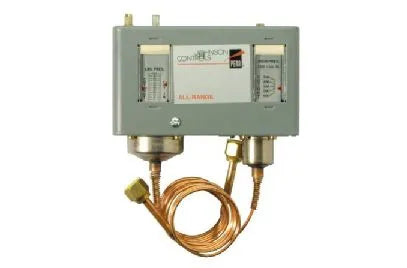

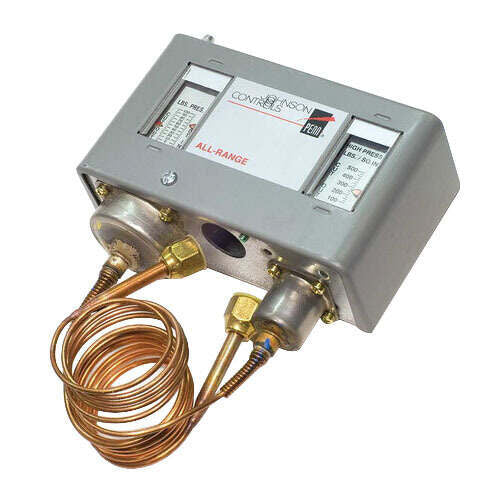

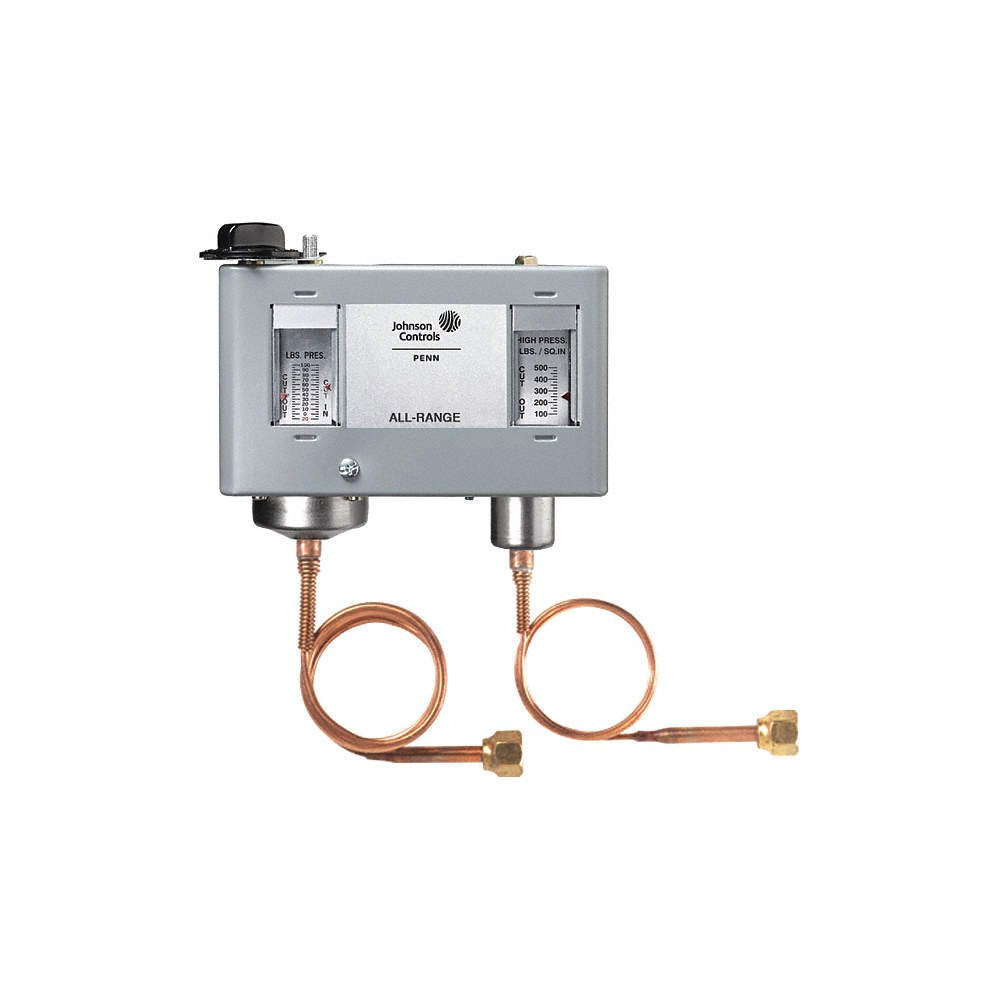

Johnson Controls P70LB-6C Dual Pressure Control 12 To 80 PSI Low Side 100 Psi To 500 PSI High Side

Product Description

Johnson Controls model P70LB-6C is an electromechanical dual pressure control device designed for precision in managing low and high pressure in HVAC and refrigeration applications. It balances functionality with efficiency for commercial systems.

• Durable all-steel case and cover for protection of internal components.
• Visible pressure scale adjustment without the need to remove the cover.
• Manual and automatic reset features to ensure safety and convenience.

Product Highlights

The unit is equipped with SPST switch action and it supports a range of 12 inch HG to 80 PSIG for low pressure and 100 to 500 PSIG for high pressure applications, making it versatile and a necessity for multiple settings. The control's load-carrying contacts are capable of direct control of AC motors up to the electrical rating specified on the cover label.

Product Information

Standard Information

• Brand: Johnson Controls
• Model Number: P70LB-6C

Technical Specifications

• Switch Type: SPST
• Low Pressure Range: 12 inch HG to 80 PSIG
• High Pressure Range: 100 to 500 PSIG
• Pressure Connection: 36 inch capillary with 1/4 inch flare nut
• Dimensions: 8.2 inches x 6.3 inches x 2.6 inches
• Weight: 3.1 pounds
