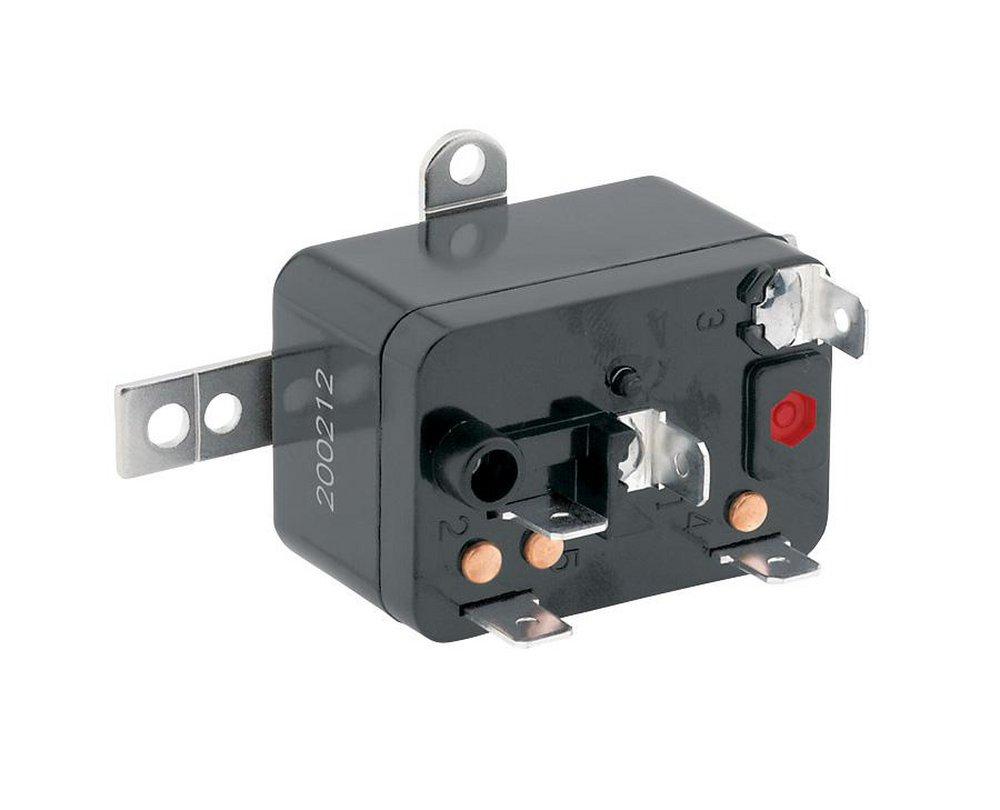

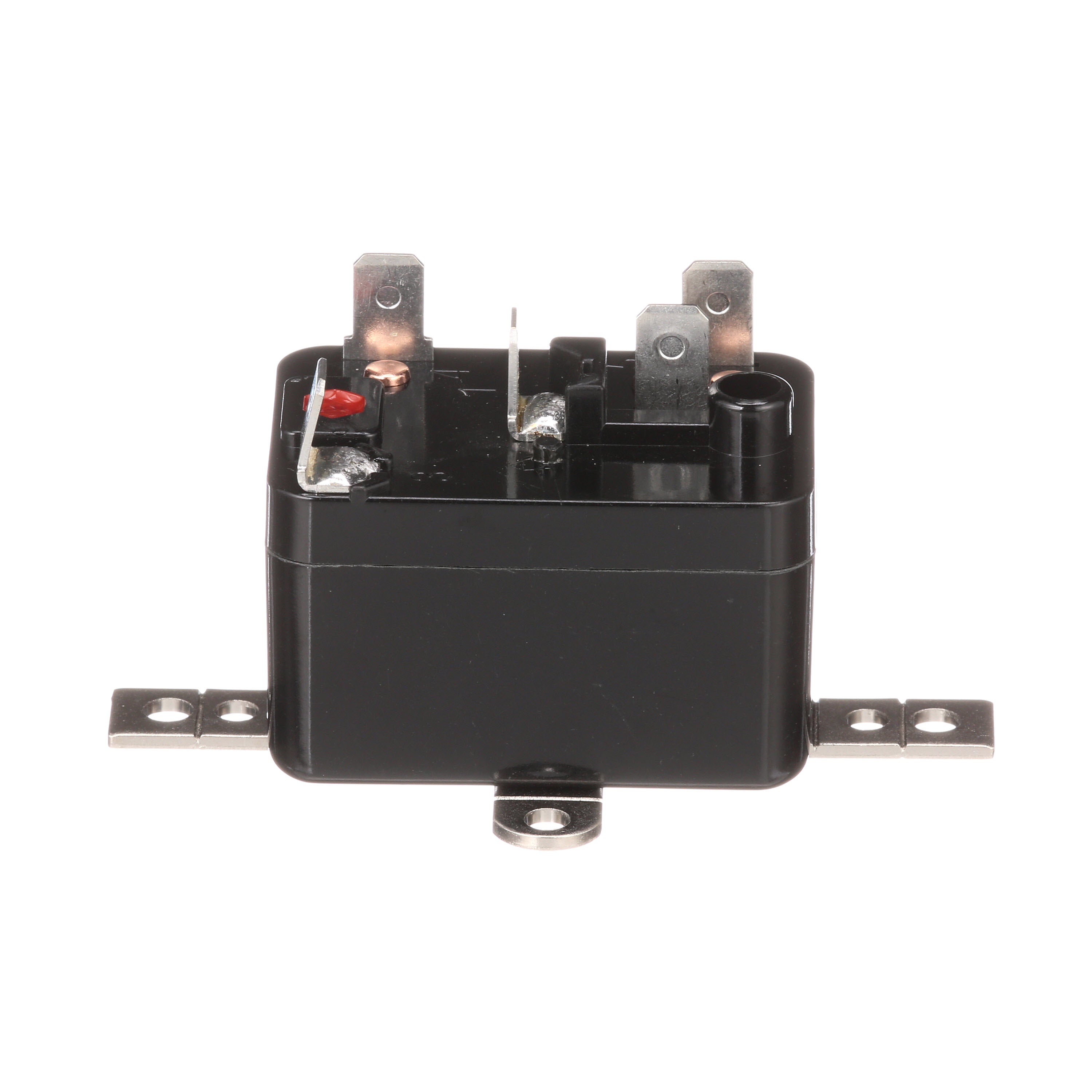

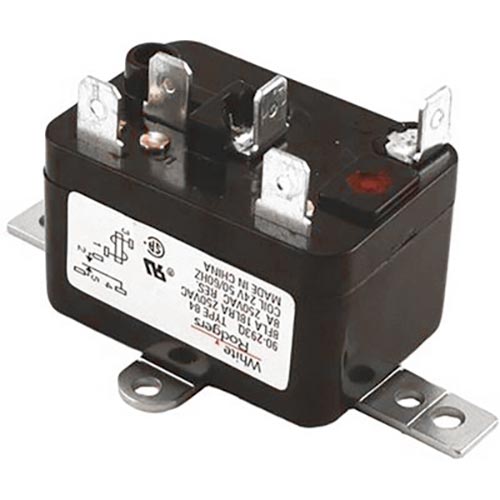

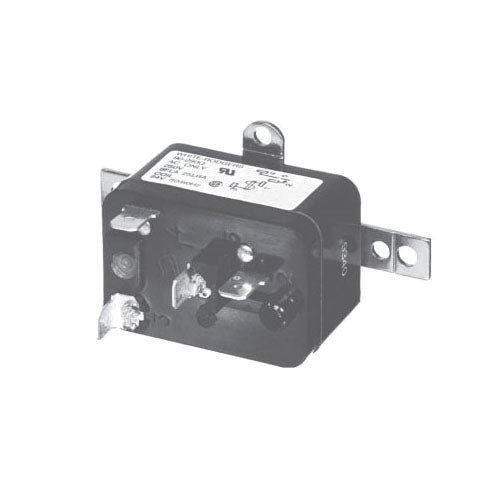

White-Rodgers 90-293Q Type 84 Fan Relay 24 VAC

Product Description

The WHITE-RODGERS 90-293Q fan relay is designed for switching single or two-speed fan motors, relays, solenoids, resistive loads, and general-purpose switching. It features a compact, totally enclosed design suitable for heating and cooling applications. SPDT switching ensures quiet, reliable, and economical operation.

• For switching single or 2 speed fan motors, relays, solenoids, resistive loads and general purpose switching
• Compact, completely enclosed design
• SPDT switching

Product Highlights

This enclosed fan relay is ideal for heating, cooling, and general switching applications requiring reliable performance.

Product Information

Standard Information

• Brand: WHITE-RODGERS
• Manufacturer Part Number: 90-293Q
• Country of Origin: CN

Technical Specifications

• Coil Voltage: 24 VAC
• Contact Form: SPDT/NO
• Terminal Type: Quick-Connect
• Contact Rating: 125/250 VAC
• Number of Poles: 1
• Frequency Rating: 50/60 Hz
• Temperature Rating: -40 to 150 deg F
• Type: Enclosed
• Mounting Type: Universal
• Maximum Operating Temperature: +150 deg F
• Minimum Operating Temperature: -40 deg F
• Coil Resistance: 90 ohm
• Input Voltage: 24V AC
• Power Consumption: 3 VA
• Electrical Connection: Quick-Connect
• Electrical Operating Durability: 100,000
• Mechanical Operating Durability: 1,000,000
• Full Load Amps @ 120VAC: 8
• Full Load Amps @ 240VAC: 8
• Environmental Protection: Enclosed
• Electrical Connection Type: Tab
• DC Resistance: 90 ohms
• Duty: Continuous
• Electric Connection: 1/4" Quick-Connect Terminals
